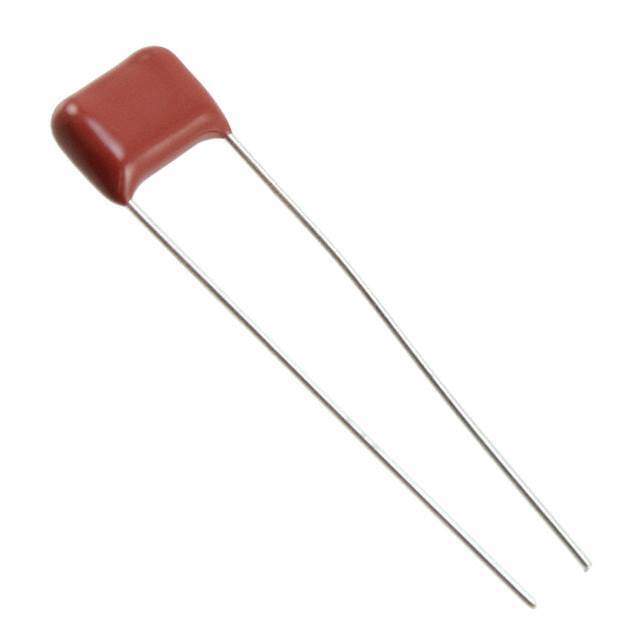

ECQ-E2333JF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series ECQ-E(F)
Packaging Bulk
Capacitance 0.033μF
Tolerance ±5%
Voltage Rating - DC 250V
Dielectric Material Polyester, Metallized
Operating Temperature Range -40°C ~ 105°C
Mounting Style Through Hole
Package Radial
Dimension 0.406" L x 0.177" W (10.30mm x 4.50mm)
Height - Seated (Maximum) 0.335" (8.50mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications General
Win Source Part Number 793019-ECQ-E2333JF
Popularity Medium
Supply and Demand Status Balance
Family Name ECQE(F)
Introduction Date August 07, 2000
ECCN EAR99
Country of Origin China, Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ECQ-E2333JF CAD Model

Description

The supply and demand status is balanced for this product.

  • Capacitance: 0.033μF
  • Tolerance: ±5%
  • Lead Spacing: 0.295" (7.50mm)
  • Mounting: Through hole
  • Operating Temperature Range: -40°C ~ 105°C
  • Package: Radial
  • Voltage Rating - DC: 250V
  • Dielectric Material: Polyester, Metallized
  • Dimension: 0.406" L x 0.177" W (10.30mm x 4.50mm)
  • Height - Seated (Maximum): 0.335" (8.50mm)
  • Manufacturer Homepage: www.panasonic.com/industrial
