Products specifications

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.68μF
Tolerance ±20%
Voltage Rating - DC 16V
Dielectric Material Acrylic, Metallized - Stacked
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.063" (1.60mm)
Termination Solder Pads
Applications EMI, RFI Suppression
Features Low ESR
Win Source Part Number 135500-ECP-U1C684MA5
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian ECP-U1C684MA5 CAD Model

Description

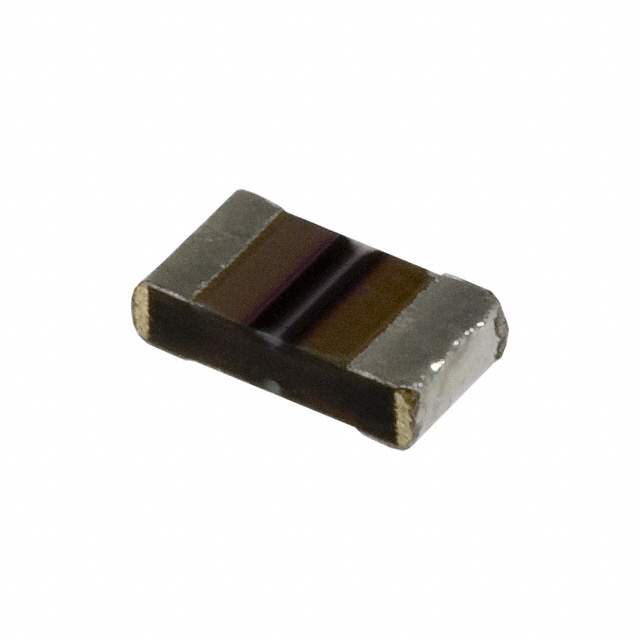

ECP-U1C684MA5 Capacitor

The ECP-U1C684MA5 capacitor is crafted for high-capacity applications, providing superb energy retention and stability.

  • Capacitance: 680,000 μF
  • Voltage Rating: 16V
  • Temperature Range: -40°C to +105°C

Applications and Projects:

  • Power conditioning systems
  • RF and microwave applications
  • Energy storage devices
  • Filter and decoupling circuits

Features and Benefits:

  • Excellent capacitance stability
  • High reliability under varied conditions
  • Low self-discharge for prolonged efficiency
  • Compact form factor for versatile usage

This capacitor is a prime choice for professionals enhancing circuit reliability and performance in diverse settings.
