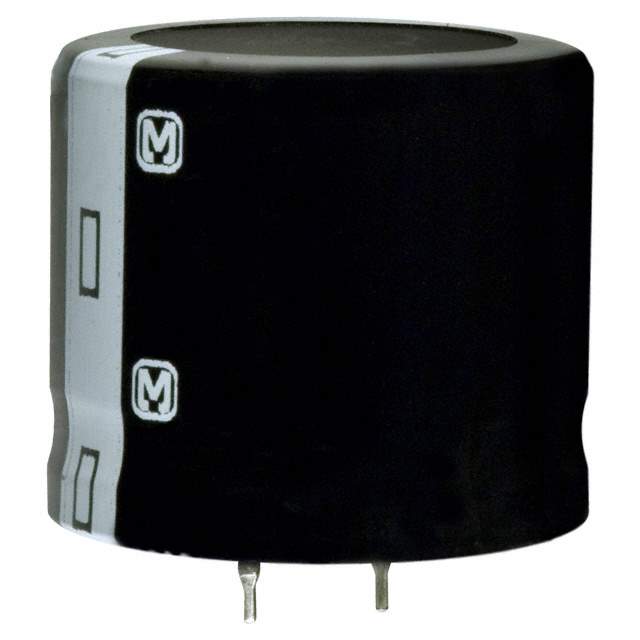

Same model may have multiple batches, images only for reference.

ECO-S1JA472EA

Name: ECO-S1JA472EA
Brand: Panasonic
SKU: 1338093
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ECO-S1JA472EA
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 4700UF 20% 63V SNAP / 4700 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 63mOhm @ 120Hz 3000 Hrs @ 105°C
Datasheet	ECO-S1JA472EA Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	TS-HA
Package	Bulk
Product Status	Obsolete
Capacitance	4700 µF
Tolerance	±20%
Voltage - Rated	63 V
ESR (Equivalent Series Resistance)	63mOhm @ 120Hz
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	3 A @ 120 Hz
Ripple Current @ High Frequency	3.45 A @ 100 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.260" (32.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Base Product Number	ECO-S1
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1338093-ECO-S1JA472EA
Ultra Librarian 3D Model	Ultra Librarian ECO-S1JA472EA CAD Model

Description

The ECO-S1JA472EA is an aluminum electrolytic capacitor from the TS-HA series.

Capacitance: 4700 μF
Voltage Rating: 63 V
Tolerance: ±20%
ESR: 63mOhm @ 120Hz
Lifetime: 3000 hours @ 105°C
Package: Radial, Can - Snap-In
Diameter: 1.378" (35.00mm)
Height: 1.260" (32.00mm)
Lead Spacing: 0.394" (10.00mm)
Mounting: Through Hole
Application: General Purpose
Package: Bulk
ECCN: EAR99
REACH: Affected
