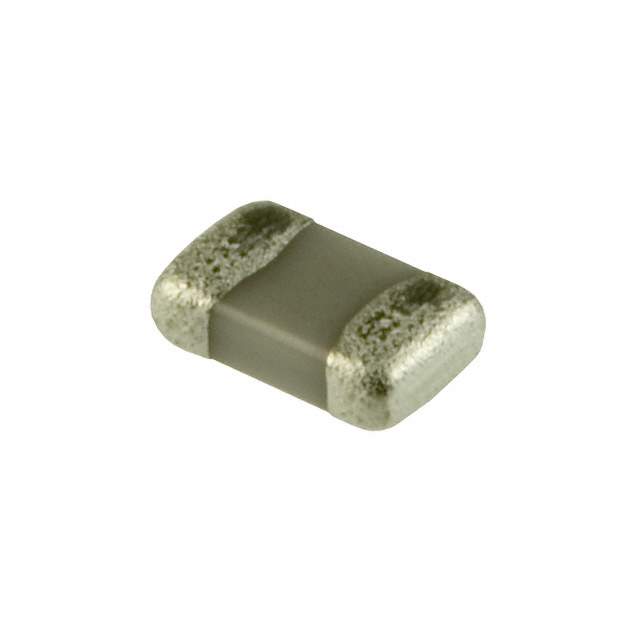

The ECJ2FB2D103K is a multilayer ceramic capacitor manufactured by Panasonic. These capacitors are known for their compact size, high reliability, and excellent electrical characteristics. They are widely used in various electronic circuits for applications such as decoupling, filtering, and energy storage.

Applications:

• Decoupling capacitors in digital circuits
• Filtering in power supplies
• Bypass capacitors in amplifier circuits
• Energy storage in low-power applications
• Signal filtering in communication systems

Features:

• Multilayer ceramic construction
• Compact size
• High capacitance value of 10nF (103)
• Voltage rating of 50V
• X5R temperature characteristic
• Surface mount technology (SMT)
• Excellent temperature stability
• Low equivalent series resistance (ESR)

Benefits:

• Improved circuit stability due to effective decoupling
• Reduced noise and ripple in power supplies
• Enhanced signal integrity in high-speed circuits
• Space saving design due to compact size
• Easy assembly with SMT technology
• Reliable performance across a wide temperature range
• Cost-effective solution for various applications

Additional Details:

The ECJ2FB2D103K capacitor has an X5R temperature characteristic, meaning its capacitance changes within ±15% over the temperature range of -55°C to +85°C. It is available in a standard EIA size code, which helps for automated pick and place during the manufacturing process. The termination finish is typically nickel barrier with solder plating, ensuring good solderability. These capacitors are designed to meet RoHS compliance, making them environmentally friendly.

Panasonic's ECJ series are known for their robust design and are a popular choice in many applications where reliability and stability are critical. They are suitable for both consumer electronics and industrial equipment.
