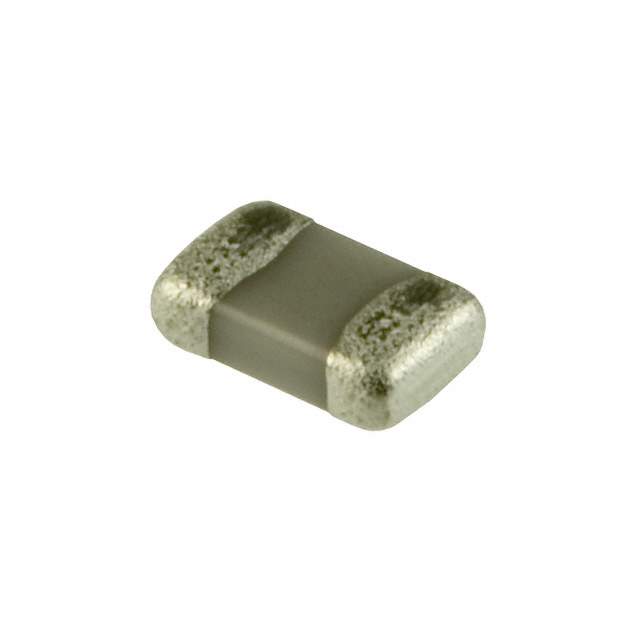

The ECJ2FB0J106K is a ceramic capacitor manufactured by Panasonic. It's designed for general-purpose applications requiring stable capacitance over a wide range of temperatures and voltages. This capacitor offers excellent reliability and performance in various electronic circuits.

Applications

• Power supply bypassing
• Decoupling in digital circuits
• Filtering in analog circuits
• Smoothing circuits
• General electronic circuits where stable capacitance is required

Features

• High capacitance value: 10µF
• Voltage rating: 6.3V
• X5R dielectric material
• Small case size (0805 or similar)
• Stable capacitance over temperature
• Low ESR (Equivalent Series Resistance)
• RoHS compliant

Benefits

• Effective decoupling and bypassing: Provides a stable voltage supply by filtering out noise and voltage fluctuations.
• Reliable performance: The X5R dielectric ensures stable capacitance even under varying temperature conditions, leading to consistent circuit behavior.
• Compact size: Its small footprint makes it suitable for high-density circuit designs.
• Long lifespan: Ceramic capacitors are known for their long operational life, contributing to the overall durability of the electronic device.
• Reduces noise: Filters unwanted noise in electronic circuits, improving signal integrity.

Technical Specifications

The ECJ2FB0J106K features a capacitance of 10µF with a tolerance typically around ±10%. It's rated for operation within a temperature range of -55°C to +85°C. The dielectric material, X5R, is a ferroelectric ceramic offering a good balance between size, capacitance, and temperature stability. It's commonly available in standard case sizes such as 0805 or 1206. Specific dimensions and performance characteristics can be found in the manufacturer's datasheet.

This capacitor is suitable for a wide range of applications, offering a reliable and cost-effective solution for capacitance requirements in modern electronic devices.
