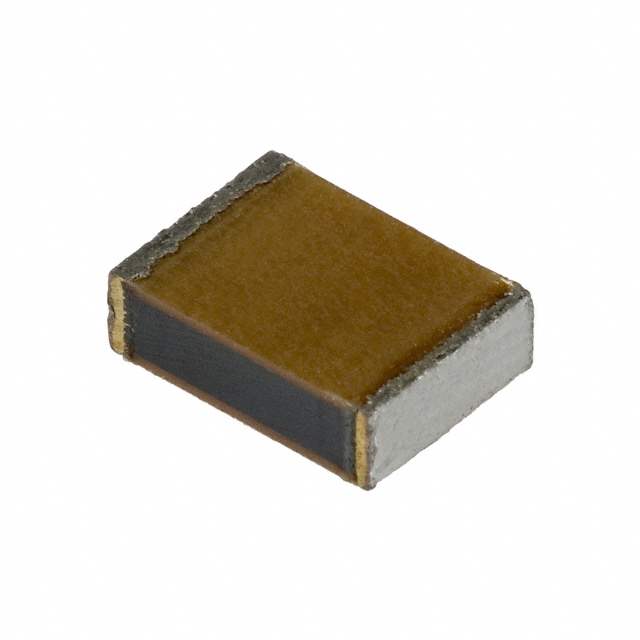

ECH-U1H224JC9 Real Image
Same model may have multiple batches, images only for reference.

ECH-U1H224JC9

Part No ECH-U1H224JC9
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.22UF 5% 50VDC 2416
Datasheet
ECH-U1H224JC9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance 0.22μF
Tolerance ±5%
Voltage Rating - DC 50V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.236" L x 0.161" W (6.00mm x 4.10mm)
Height - Seated (Max) 0.134" (3.40mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 000903-ECH-U1H224JC9
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECH-U1H224JC9 CAD Model

Description

Product Overview

The ECH-U1H224JC9 is a high-performance electronic component specifically designed for applications requiring precision and reliability. Its compact form factor and robust construction make it ideal for various projects.

Features and Benefits

  • High stability and reliability
  • Compact design ideal for space-constrained applications
  • Excellent temperature tolerance

Applications

  • Consumer electronics
  • Automotive sensors and controls
  • Industrial automation systems

With its advanced features and versatile applications, the ECH-U1H224JC9 is perfect for implementing in diverse projects that demand consistent performance and durability.
