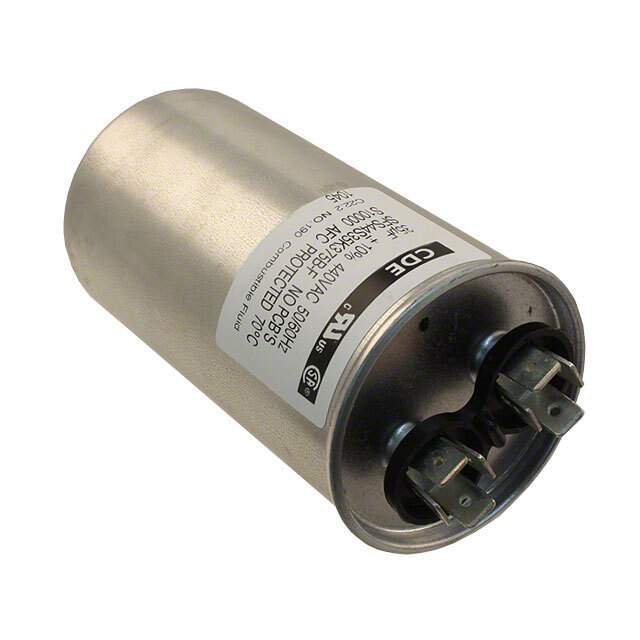

23FB4430A-F Real Image
Same model may have multiple batches, images only for reference.

23FB4430A-F

Part No 23FB4430A-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 30UF 10% 440VAC RADIAL / 30 µF Film Capacitor 440V Polypropylene (PP), Metallized Radial, Can
Datasheet
23FB4430A-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series MPF
Package Bulk
Capacitance 30 µF
Tolerance ±10%
Voltage Rating - AC 440V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 70°C
Mounting Type Chassis Mount, Requires Holder/Bracket
Package / Case Radial, Can
Dimension 2.125" Dia (53.98mm), Lip
Height - Seated (Max) 4.090" (103.88mm)
Termination Quick Connect, Disconnect
Lead Spacing 0.813" (20.64mm)
Applications Motor Run; Power Factor Correction (PFC)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0020
Standard Package 42
Win Source Part Number 1047743-23FB4430A-F
Ultra Librarian 3D Model Ultra Librarian 23FB4430A-F CAD Model

Description

The MPF series film capacitor from Cornell Dubilier Electronics (CDE) is a high-quality capacitor designed for motor run and power factor correction (PFC) applications.

  • Capacitance: 30 µF
  • Tolerance: ±10%
  • Voltage AC: 440V
  • Operating Temperature: -40°C to 70°C
  • Dielectric Material: Polypropylene (PP), metallized
  • Mounting Type: Chassis mount (requires holder/bracket)
  • Package/Case: Radial, can (2.125" Dia (53.98mm), Lip)
  • Packaging: Bulk (Standard package of 42)
  • Termination: Quick connect, disconnect
  • Lead Spacing: 0.813" (20.64mm)
  • Height (Seated Max): 4.090" (103.88mm)
