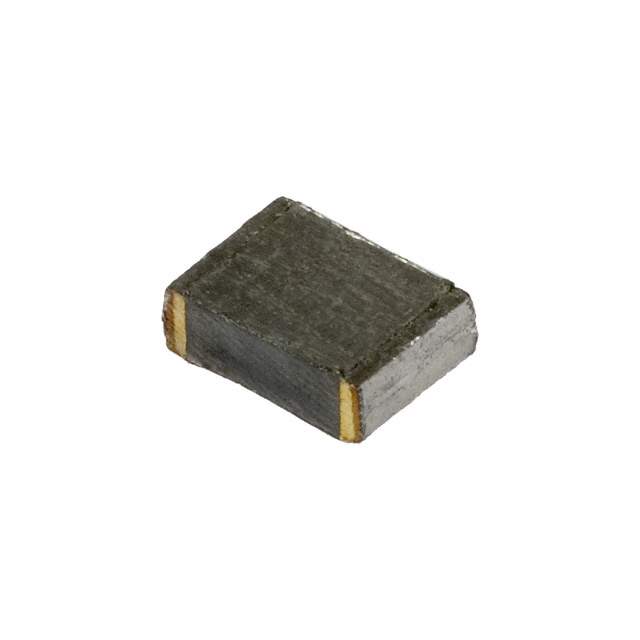

ECH-U1C823JB5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Estimated Pruduction Lead Time 12 Weeks
Features Film Capacitor 11V 16V Polyphenylene Sulfide (PPS), Metallized - Stacked 1210 (3225 Metric)
Manufacturer Panasonic
Series ECH-U(B)
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package 1210 (3225 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Part Number ECHU1C823JB5, PCF1087CT, ECHU1C823JB, PCF1087TR-NDR, PCF1087DKR, PCF1087TR, PCF1087CT-NDR, ECH-U1C823JB
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 870032-ECH-U1C823JB5
Ultra Librarian 3D Model Ultra Librarian ECH-U1C823JB5 CAD Model

Description

The Panasonic ECH-U(B) series film capacitor is a reliable and high-performance electronic component used in various applications.

  • Voltage Rating: 11V and 16V
  • Material: Polyphenylene Sulfide (PPS)
  • Construction: Metallized-stacked
  • Package: 1210 (3225 Metric)
  • Mounting: Surface Mount
  • Operating Temperature Range: -55°C to 125°C
  • Category: Capacitors
  • Supply and Demand Status: Limited
  • MSL Level: 1
  • Estimated Production Lead Time: 12 weeks
  • REACH: REACH unaffected
  • HTSUS: 8532.25.0010
