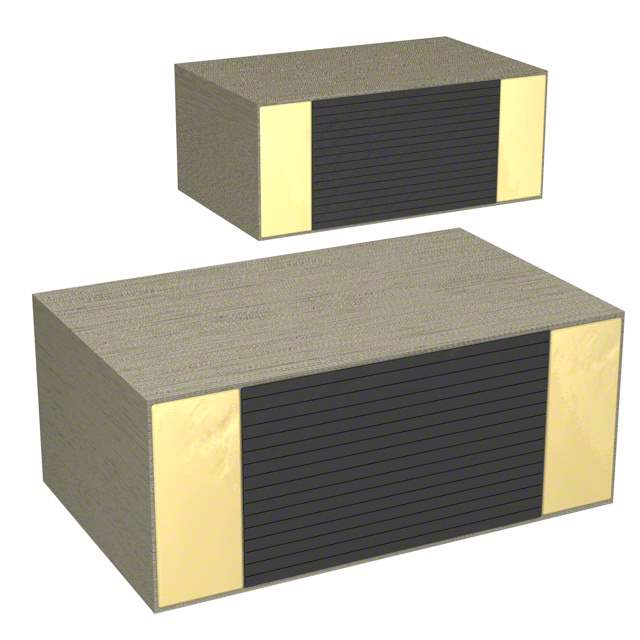

ECH-U1C562JB5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 5600pF
Tolerance ±5%
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.039" (1.00mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 106743-ECH-U1C562JB5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECH-U1C562JB5 CAD Model

Description

Product Overview for ECH-U1C562JB5

The ECH-U1C562JB5 capacitor is engineered for efficiency and durability in electronic circuits. This component's advanced materials and design cater to high-frequency and high-reliability applications.

Key Features:

  • Capacitance Value: 5600 pF
  • Voltage Rating: 50V
  • Dielectric Material: X7R
  • Temperature Coefficient: ±15%
  • Mounting Type: SMT

Benefits:

  • Stable capacitance over a broad temperature range.
  • Easy integration with modern PCBs.
  • Reduced signal distortion.
  • Long operational life under repeated thermal cycling.

Applications:

  • Automotive Electronics
  • Industrial Controls
  • Consumer Electronics
  • High-Voltage Circuitry
