Same model may have multiple batches, images only for reference.

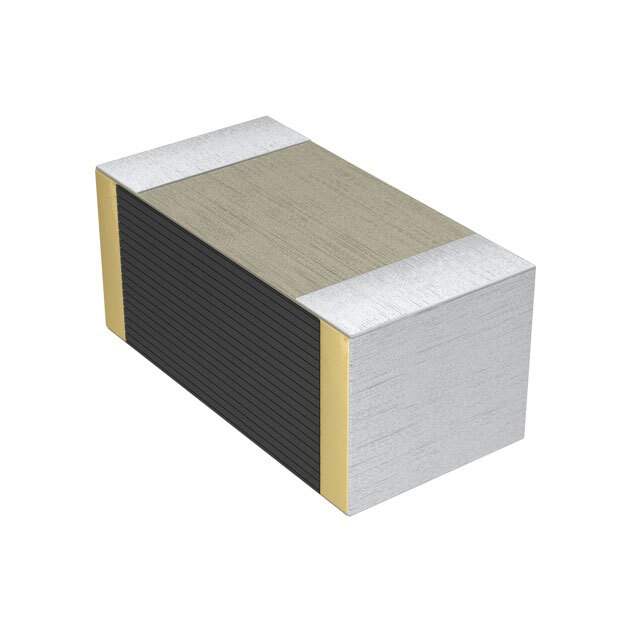

ECH-U1C561GX5 Real Image
Same model may have multiple batches, images only for reference.

ECH-U1C561GX5

Part No ECH-U1C561GX5
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 560PF 2% 16VDC 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 560pF
Tolerance ±2%
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.033" (0.85mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 111544-ECH-U1C561GX5
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1C561GX5 CAD Model

Description

Product Description

The ECH-U1C561GX5 is a versatile electronic capacitor offering exceptional durability and stability. Crafted for use in diverse electronic applications, it’s a staple component in both home and industrial settings.

  • LED lighting systems
  • Audio equipment
  • Embedded systems

Features and Benefits

  • High stability under various conditions
  • Energy-efficient performance
  • Long operational life

This component is essential in any design requiring reliability and longevity, offering optimal performance in a compact form.
