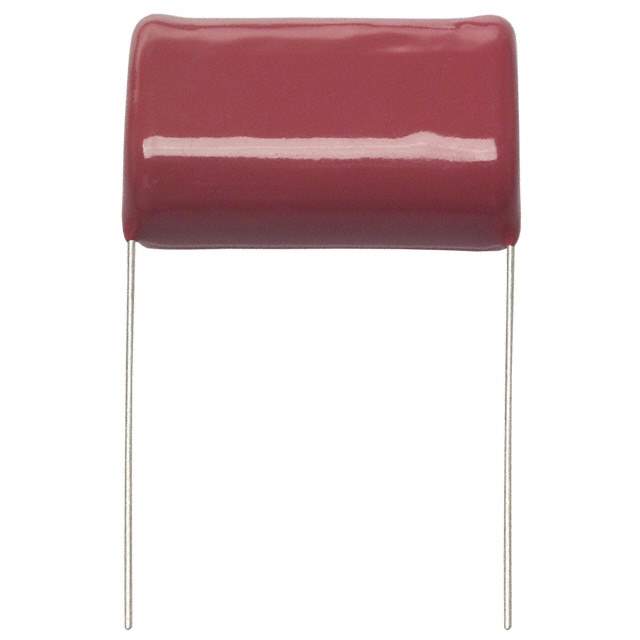

ECH-A25305JX Real Image
Same model may have multiple batches, images only for reference.

ECH-A25305JX

Part No ECH-A25305JX
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 3UF 5% 250VAC RADIAL
Datasheet
ECH-A25305JX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Obsolete(EOL)
Capacitance 3μF
Tolerance ±5%
Voltage Rating - AC 250V
Dielectric Material Polyester, Polyethylene, Metallized
Temperature Range - Operating -25°C to 70°C
Mounting Through Hole
Dimension 1.457" L x 0.650" W (37.00mm x 16.50mm)
Height - Seated (Max) 1.102" (28.00mm)
Termination PC Pins
Lead Spacing 1.280" (32.50mm)
Applications Motor Run
Win Source Part Number 1011084-ECH-A25305JX
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Portable Devices, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian ECH-A25305JX CAD Model

Description

This capacitor from Panasonic Electronic Components is a high-quality component that is perfect for use in motor run applications.

  • Applications: Motor run
  • Voltage Rating: 250V AC
  • Capacitance: 3μF
  • Dielectric Material: Polyester, polyethylene, and metallized
  • Mounting Style: Through-hole
  • Termination: PC pins
  • Tolerance: ±5%
  • Operating Temperature: -25°C to 70°C
  • Size: 1.457" L x 0.650" W (37.00mm x 16.50mm)
  • Height: 1.102" (28.00mm)
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
  • Usage: Portable devices and consumer electronics.
