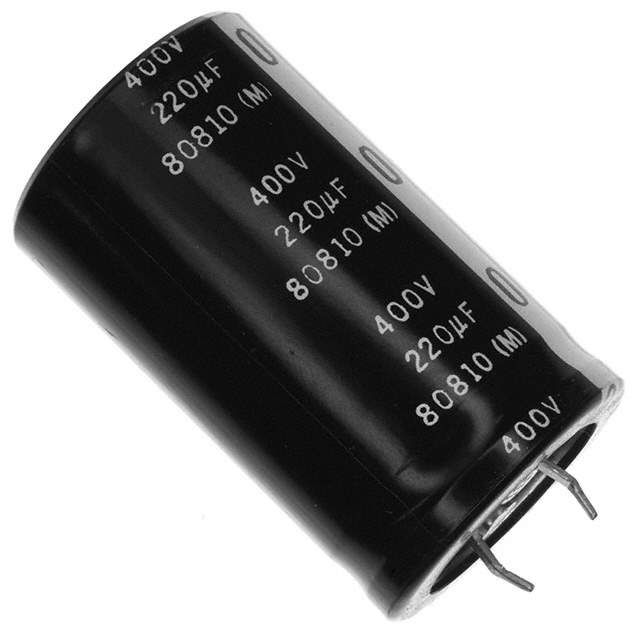

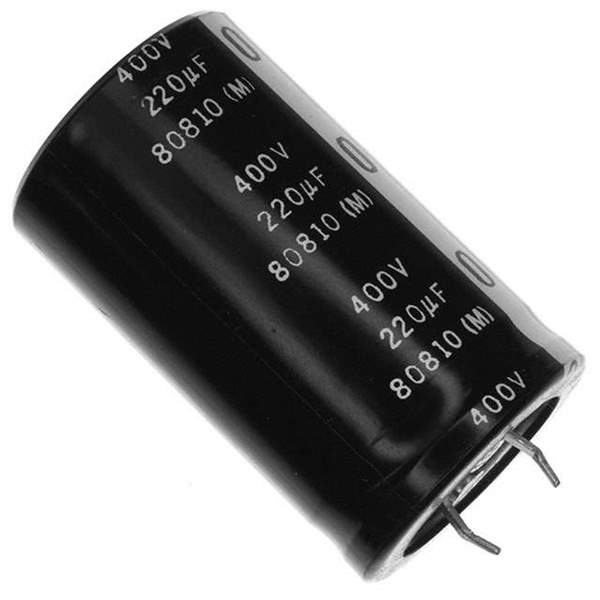

Same model may have multiple batches, images only for reference.

ECE-S2GG221U

Get a Quote

Part No	ECE-S2GG221U
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 400V SNAP / Cap Aluminum Lytic 220uF 400V 20% (30 X 50mm) Snap-In 10mm 1000mA 2000h 105°C Bulk
Datasheet	ECE-S2GG221U Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Panasonic Electronic Components
Series	TS-NH
Packaging	Bulk
Part Status	Obsolete(EOL)
Capacitance	220μF
Tolerance	±20%
Voltage Rating DC	400V
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature Range	-25°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	1A @ 120Hz
Ripple Current - High Frequency	1.25A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Dimension	1.181" Dia (30.00mm)
Height - Seated (Maximum)	1.969" (50.00mm)
Mounting Style	Through Hole
Package	Radial, Can - Snap-In
Win Source Part Number	774244-ECE-S2GG221U
Popularity	Medium
Supply and Demand Status	Balance
Family Name	TS-NH
Introduction Date	March 09, 2008
ECCN	EAR99
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian ECE-S2GG221U CAD Model

Description

The ECE-S2GG221U is a product series manufactured by Panasonic Electronic Components, with a Win Source Part Number of 774244.

Series: ECE-S2GG
Capacitance: 220μF
Maximum Voltage: 400V
Category: Capacitors
Mounting Style: Through Hole
Lifetime: 2000 hours @ 105°C
