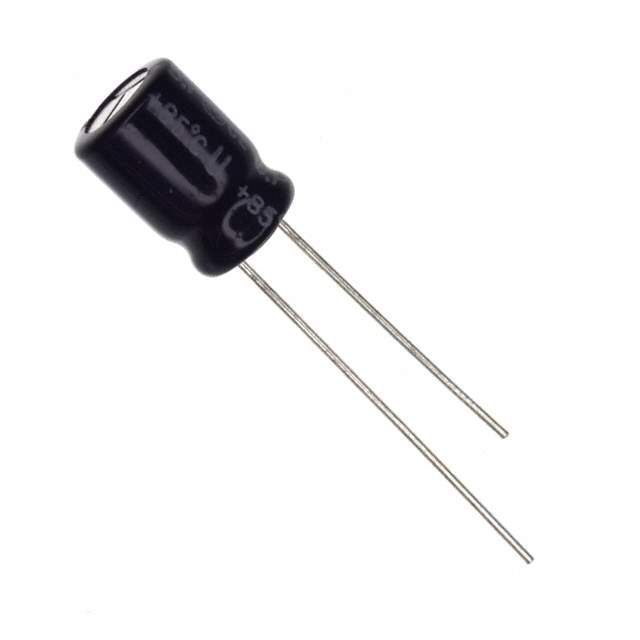

Same model may have multiple batches, images only for reference.

ECE-A1HN220U

Name: ECE-A1HN220U
Brand: Panasonic
SKU: 1328528
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ECE-A1HN220U
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 50V RADIAL / 22 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Bulk
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Bi-Polar
Applications	General Purpose
Ripple Current @ Low Frequency	90 mA @ 120 Hz
Ripple Current @ High Frequency	153 mA @ 10 kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.453" (11.50mm)
Mounting	Through Hole
Case / Package	Radial, Can
Base Product Number	ECE-A1
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	P1281,ECEA1HN220U
Standard Package	200
Win Source Part Number	1328528-ECE-A1HN220U
Ultra Librarian 3D Model	Ultra Librarian ECE-A1HN220U CAD Model

Description

The Panasonic Electronic Components ECE-A1 series aluminum electrolytic capacitor is a bipolar component designed for general-purpose applications.

Capacitance: 22μF
Voltage Rating: 50V
Tolerance: ±20%
Package/Case: Radial, Can
Packaging: Bulk
Operating Temperature Range: -40°C to 85°C
Lifetime: 2000 hours @ 85°C
Diameter: 8.00mm
Height: 11.50mm
