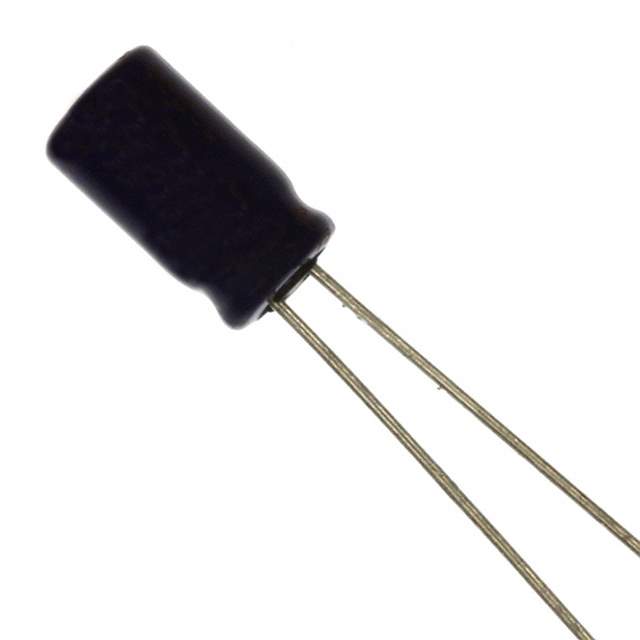

Same model may have multiple batches, images only for reference.

ECE-A1AN101X

Name: ECE-A1AN101X
Brand: Panasonic
SKU: 870015
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ECE-A1AN101X
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 10V RADIAL
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Estimated Pruduction Lead Time	49 Weeks
Features	Aluminum Electrolytic Capacitors Radial, Can - 2000 Hrs @ 85°C
Manufacturer	Panasonic
Series	SU
Package	Bulk
Operating Temperature Range	-40°C ~ 85°C
Mounting	Through Hole
Package	Radial, Can
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	ECEA1AN101X, P1370, 2266-ECE-A1AN101X
Quantity per package	200
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	870015-ECE-A1AN101X
Ultra Librarian 3D Model	Ultra Librarian ECE-A1AN101X CAD Model

Description

The ECE-A1AN101X is an aluminum electrolytic capacitor with a capacitance of 100μF and a voltage rating of 10V DC. It is manufactured by Panasonic.

Capacitance: 100μF
Voltage: 10V DC
Series: SU
Package: Radial, can
Operating Temperature: -40°C to 85°C
Lifetime @ Temperature: 2000 hours @ 85°C
Lead Spacing: 0.2" (5.00mm)
Ripple Current: 180mA @ 120Hz (low frequency), 270mA @ 100kHz (high frequency)
Supply and Demand Status: Limited
Pieces per Package: 200
Estimated Production Lead Time: 49 weeks
REACH Status: Unaffected
