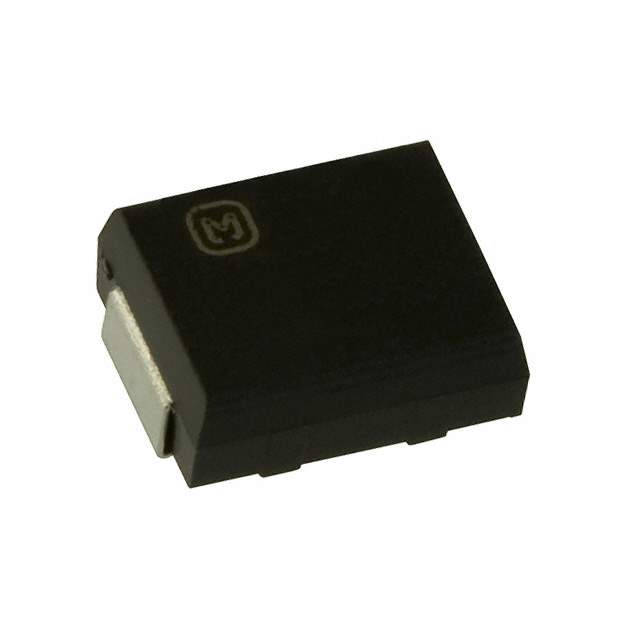

ECC-T3G180JG2 Real Image
Same model may have multiple batches, images only for reference.

ECC-T3G180JG2

Part No ECC-T3G180JG2
Manufacturer Panasonic
Catalog Ceramic Capacitors
Description CAP CER 18PF 4KV SL/GP SMD / Cap Ceramic Single 18pF 4000V GP 5% (5.7 X 4.5 X 2.3mm) Pad SMD 105°C T/R
Datasheet
ECC-T3G180JG2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel package
Part Status Obsolete(EOL)
Capacitance 18pF
Tolerance ±5%
Voltage Rating DC 4000V (4kV)
Temperature Coefficient SL/GP
Operating Temperature Range -25°C ~ 105°C
Features High Voltage
Applications General
Mounting Surface Mount, MLCC
Package Nonstandard SMD
Dimension 0.224" L x 0.177" W (5.70mm x 4.50mm)
Thickness (Maximum) 0.091" (2.30mm)
Win Source Part Number 796036-ECC-T3G180JG2
Popularity Medium
Supply and Demand Status Balance
Family Name ECC
Introduction Date September 26, 2000
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ECC-T3G180JG2 CAD Model

Description

The 796036-ECC-T3G180JG2 is a high voltage capacitor from Panasonic Electronic Components.

  • Capacitance: 18pF
  • Voltage Rating: 4000V (4kV)
  • Tolerance: ±5%
  • Temperature Coefficient: SL/GP
  • Thickness: 0.091 inches (2.30mm)
  • Operating Temperature Range: -25°C to 105°C
  • Applications: General
  • Status: Obsolete (EOL)
