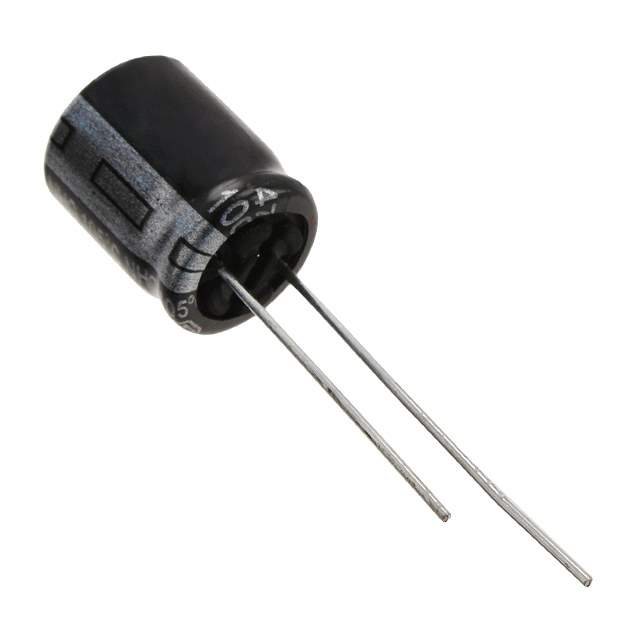

ECA-1HHG331 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 410 mA @ 120 Hz
Ripple Current @ High Frequency 615 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.669" (17.00mm)
Mounting Through Hole
Case / Package Radial, Can
Base Product Number ECA-1HH
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P5573,ECA1HHG331
Standard Package 200
Win Source Part Number 1330623-ECA-1HHG331
Ultra Librarian 3D Model Ultra Librarian ECA-1HHG331 CAD Model

Description

The Panasonic Electronic Components ECA-1HHG331 is a radial, can-type aluminum electrolytic capacitor with a capacitance of 330 µF and a voltage rating of 50 V.

  • Capacitance: 330 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): -
  • Ripple Current (Low Frequency): 410 mA @ 120 Hz
  • Ripple Current (High Frequency): 615 mA @ 100 kHz
  • Height: 0.669 inches (17.00mm)
  • Diameter: 0.394 inches (10.00mm)
  • Lifetime: 2000 hours @ 105°C
  • Temperature Range: -55°C to 105°C
  • Polarization: Polarized
  • Lead Spacing: 0.197 inches (5.00mm)
  • Packaging: Bulk (200)
  • Compliance: ROHS3
