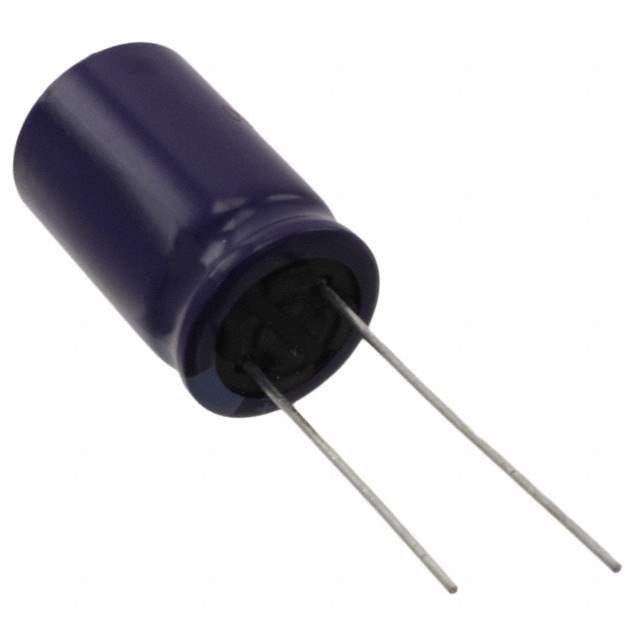

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series M-A
Package Bulk
Capacitance 6800 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.4 A @ 120 Hz
Ripple Current @ High Frequency 2.38 A @ 10 kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number ECA-1AM
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names P5131,Q2128659,ECA1AM682
Standard Package 100
Win Source Part Number 1003548-ECA-1AM682
Ultra Librarian 3D Model Ultra Librarian ECA-1AM682 CAD Model

Description

The Panasonic Electronic Components M-A ECA-1AM682 is an aluminum electrolytic capacitor with a capacitance of 6800 µF and a voltage rating of 10V.

  • Manufacturer:Panasonic Electronic Components
  • Capacitor Type: Aluminum Electrolytic
  • Capacitance: 6800 µF
  • Voltage Rating: 10V
  • Supply and Demand: Shortage
  • Tolerance: ±20%
  • Operating Temperature Range: -40°C to 85°C
