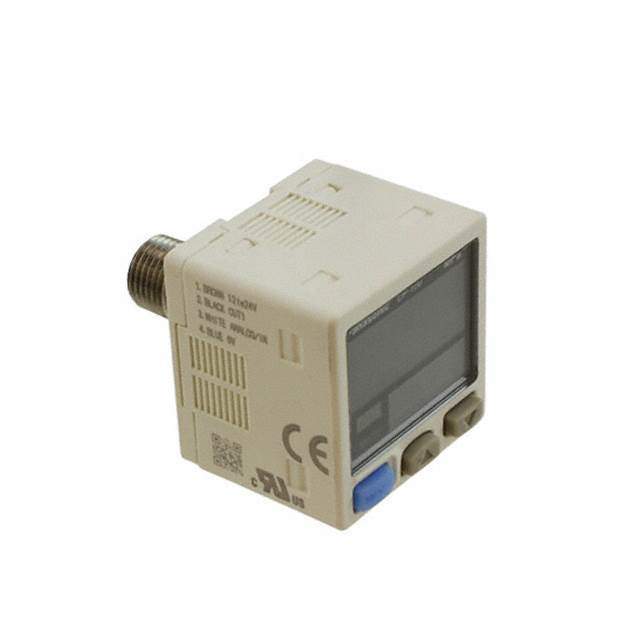

DP-102 Real Image
Same model may have multiple batches, images only for reference.

DP-102

Part No DP-102
Manufacturer Panasonic
Catalog Pressure Sensors, Transducers
Description SENSOR PRESSURE -0.1 - 1MPA /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers - Industrial
Mfr Panasonic Industrial Automation Sales
Series DP-100
Package Box
Applications Industrial Automation
Pressure Type Vented Gauge
Operating Pressure -14.5PSI ~ 145.04PSI (-100kPa ~ 1000kPa)
Output Type NPN - Open Collector
Voltage - Supply 12V ~ 24V
Port Size Female - M5, Male - 1/8" (3.18mm) BSPT
Port Style Threaded
Termination Style Connector
Maximum Pressure -21.76PSI ~ 217.56PSI (-150kPa ~ 1500kPa)
Temperature Range - Operating -10°C ~ 50°C
Package / Case Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names 1110-2452
Standard Package 1
Win Source Part Number 1055853-DP-102
Ultra Librarian 3D Model Ultra Librarian DP-102 CAD Model

Description

The DP-102 pressure transducer from Panasonic is designed for industrial automation applications.

  • Series: DP-100
  • Pressure Type: vented gauge
  • Operating Pressure Range: -14.5PSI to 145.04PSI (-100kPa to 1000kPa)
  • Maximum Pressure Range: -21.76PSI to 217.56PSI (-150kPa to 1500kPa)
  • Port Size: female M5 and male 1/8" (3.18mm) BSPT
  • Port Style: threaded
  • Output Type: NPN - Open Collector
  • Voltage Supply Range: 12V to 24V
  • Operating Temperature Range: -10°C to 50°C
  • Package: module
  • Alternative Parts: DP-102-N-P, DP-102-N, DP-112-E-P-J, MPX2202GP, MPX2102AP, and MPX53GPDP102
