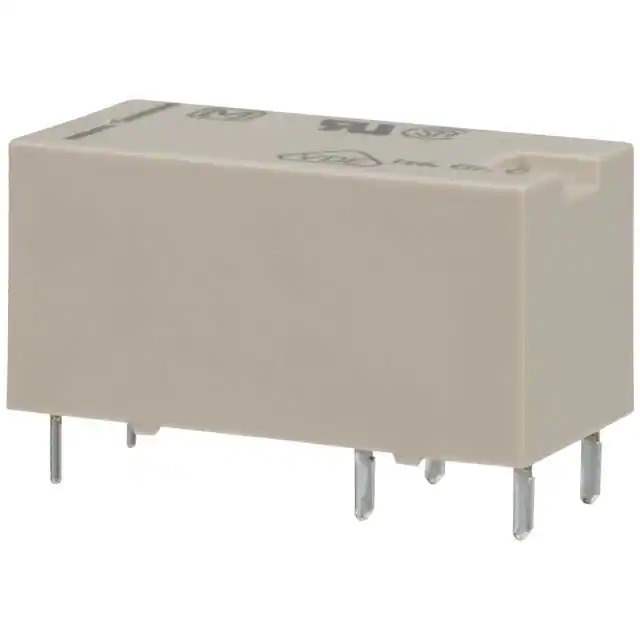

DE1A-12V Real Image
Same model may have multiple batches, images only for reference.

DE1A-12V

Part No DE1A-12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series DE
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 720 Ohms
Base Product Number DE1A
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 844571-DE1A-12V
Ultra Librarian 3D Model Ultra Librarian DE1A-12V CAD Model

Description

The DE1A-12V is a power relay manufactured by Panasonic.

  • Series: DE
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 10A @ 250VAC and 30VDC
  • Coil Voltage: 12VDC
  • Coil Resistance: 720 Ohms
  • Operate Time: 10ms
  • Release Time: 5ms
  • Mounting Type: through-hole
  • Temperature Range: -40°C to 70°C
