Same model may have multiple batches, images only for reference.

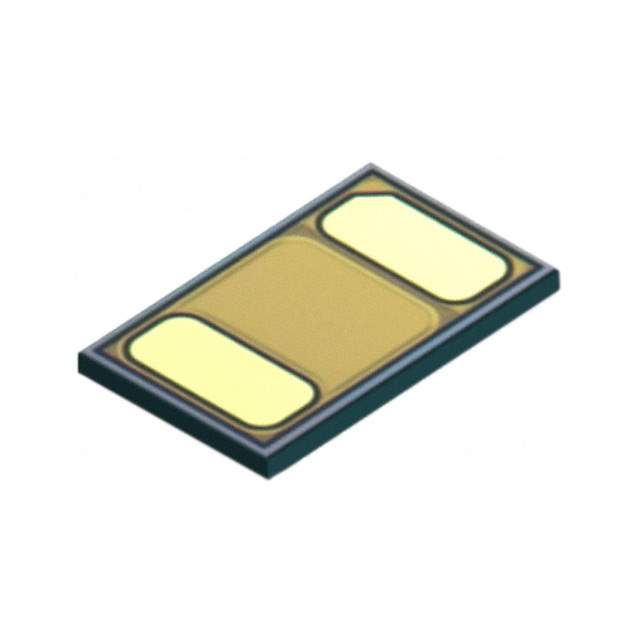

DB2G42600L1 Real Image
Same model may have multiple batches, images only for reference.

DB2G42600L1

Part No DB2G42600L1
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 1A 0402
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Diode Schottky 40 V 1A Surface Mount 0402 (1005 Metric)
Manufacturer Panasonic
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package 0402 (1006 Metric)
Case / Package 0402 (1005 Metric)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number P18984TR, P18984CT, P18984DKR
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868234-DB2G42600L1
Ultra Librarian 3D Model Ultra Librarian DB2G42600L1 CAD Model

Description

The Panasonic DB2G42600L1 diode is a Schottky diode with a forward voltage of 650mV @ 500mA and a reverse recovery time (trr) of 4.5ns. Panasonic

  • Mounting: Surface mount
  • Maximum Reverse Voltage (Vr): 40V
  • Average Rectified Current (Io): 1A
  • Speed: Fast recovery (< 500ns)
  • Current Rating: > 200mA (Io)
  • Case/Package: 0402 (1006 Metric)
  • Packaging: Reel
  • Status: Discontinued at Digi-Key
