Same model may have multiple batches, images only for reference.

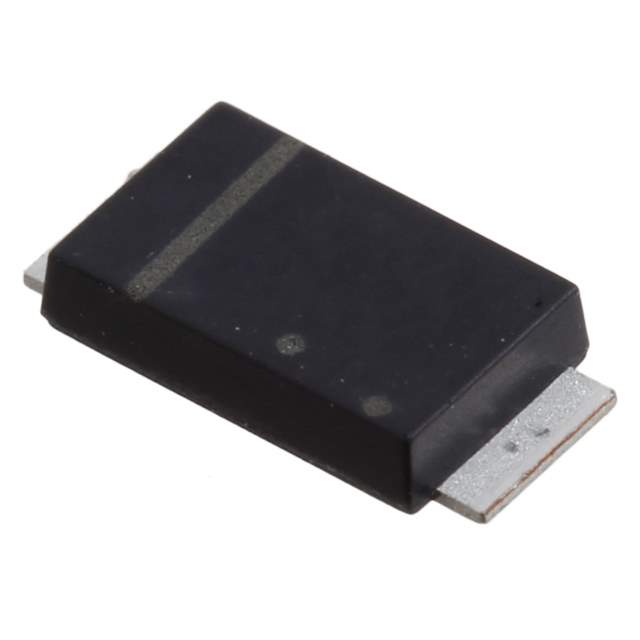

DB2440300L Real Image
Same model may have multiple batches, images only for reference.

DB2440300L

Part No DB2440300L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 3A TMINIP2 / Diode Schottky 40 V 3A (DC) Surface Mount TMiniP2-F2-B
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Panasonic Electronic Components
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 3A (DC)
Voltage - Forward (Vf) (Max) @ If 540 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 15 ns
Current - Reverse Leakage @ Vr 250 µA @ 40 V
Capacitance @ Vr, F 50pF @ 10V, 1MHz
Mounting SMD (SMT)
Package / Case SOD-128
Supplier Device Package TMiniP2-F2-B
Operating Temperature - Junction 150°C (Max)
Base Product Number DB24403
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names DB2440300LCT,DB2440300LDKR,DB2440300LTR
Standard Package 3,000
Win Source Part Number 1055218-DB2440300L
Ultra Librarian 3D Model Ultra Librarian DB2440300L CAD Model

Description

The DB2440300L is a Schottky diode from Panasonic Electronic Components.

  • Maximum Reverse Voltage: 40V
  • Average Rectified Current: 3A
  • Forward Voltage: 540mV @ 3A
  • Reverse Recovery Time: 15ns
  • Package: SOD-128
  • Supplied: Tape and Reel
  • Capacitance: 50pF @ 10V, 1MHz
  • Operating Temperature Range: Up to 150°C (Max)
