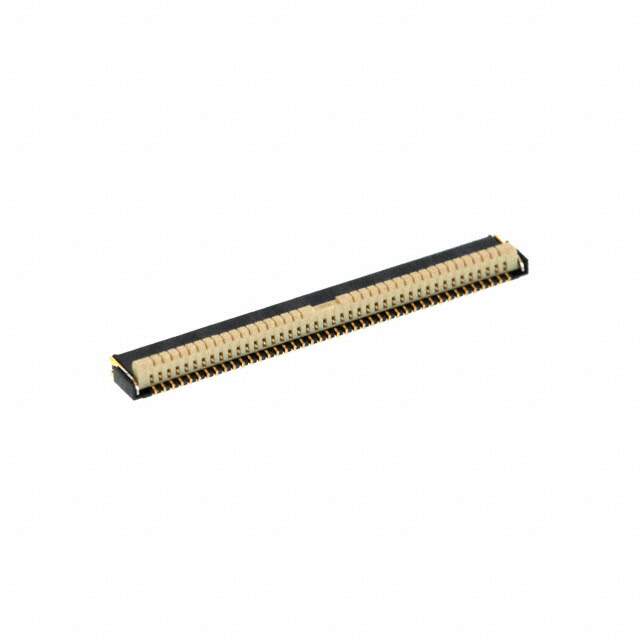

AYF534065T Real Image
Same model may have multiple batches, images only for reference.

AYF534065T

Part No AYF534065T
Manufacturer Panasonic
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 40POS 0.50MM R/A / 40 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Panasonic Electric Works
Series Y5BW
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 40
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock, Backlock
Cable End Type Notched
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A per Contact
Mating Cycles 20
Base Product Number AYF534065
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names AYF534065T-ND,255-5801-2,255-5801-1,-AYF534065T-ND,255-5801-6
Standard Package 5,000
Win Source Part Number 1115392-AYF534065T
Ultra Librarian 3D Model Ultra Librarian AYF534065T CAD Model

Description

The AYF534065T is a 40 position FFC, FPC (Flat Flexible) Connector manufactured by Panasonic Electric Works.

  • Pitch: 0.020" (0.50mm)
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Voltage Rating: 50V
  • Height Above Board: 0.039" (1.00mm)
  • FFC, FCB Thickness: 0.30mm
  • Locking Feature: Flip Lock and Backlock
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Actuator Material: Liquid Crystal Polymer (LCP)
  • Material Flammability Rating: UL94 V-0
  • Package: Tape and Reel
  • Standard Package: 5,000
  • Mating Cycle: 20
  • Mounting Type: Surface Mount, Right Angle
  • Operating Temperature: -55°C to 85°C
