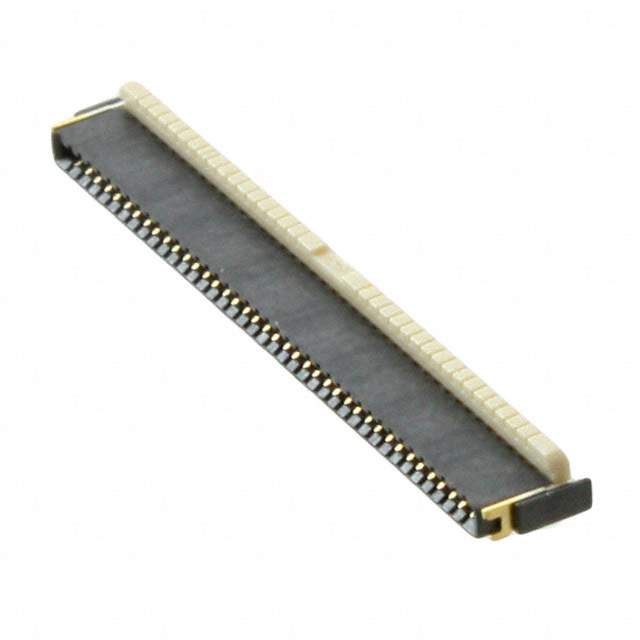

Same model may have multiple batches, images only for reference.

AYF534035

Name: AYF534035
Brand: Panasonic
SKU: 435831
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	AYF534035
Manufacturer	Panasonic
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC FPC 40POS 0.50MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Panasonic Electric Works
Packaging	Reel - TR
Status	Active
Flat Flex Type	FFC, FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	40
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.039" (1.00mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Tapered
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Voltage Rating	50V
Temperature Range - Operating	-55°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A per Contact
Contact Finish Thickness	Flash
Mating Cycles	20
Win Source Part Number	1021172-AYF534035
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	5k pcs
Ultra Librarian 3D Model	Ultra Librarian AYF534035 CAD Model

Description

The Panasonic Electric Works AYF534035 is a 40-position, 0.020-inch pitch FFC/FPC connector.

Voltage Rating: 50V
Current Rating: 0.5A per contact
Termination: Solder
Contact Finish: Gold
Contact Finish Thickness: Flash
Housing and Actuator Materials: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Mounting Style: Surface Mounted, Right Angle
Mating Cycle: 20
Market Status: Active
Popularity: Medium
Win Source Part Number: 1021172-AYF534035
