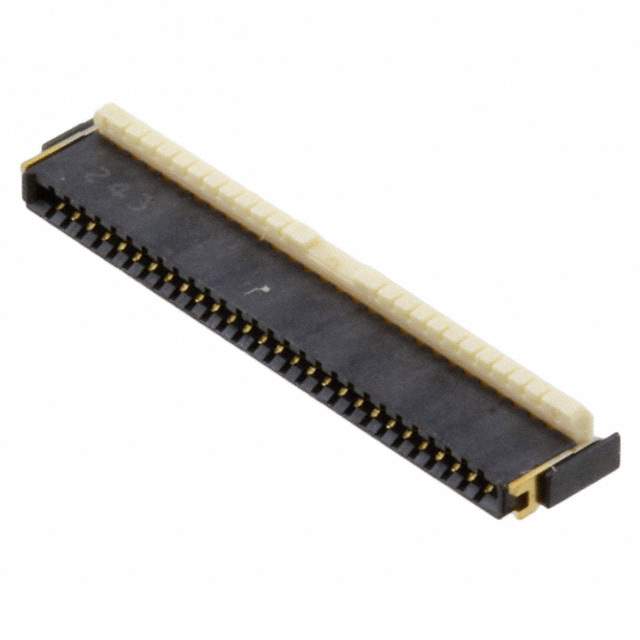

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Panasonic Electric Works
Series Y5B
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 28
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A per Contact
Contact Finish Thickness Flash
Mating Cycles 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 255-3892-6,AYF532835-ND,255-3892-1,255-3892-2
Standard Package 1,000
Win Source Part Number 1007023-AYF532835
Ultra Librarian 3D Model Ultra Librarian AYF532835 CAD Model

Description

The Panasonic Electric Works Y5B FFC/FPC connector is a top and bottom contact type connector with 28 positions and a pitch of 0.020" (0.50mm).

  • Series: Y5B
  • Positions: 28
  • Pitch: 0.020" (0.50mm)
  • Contact Type: Top and bottom
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Package: Tape & Reel
  • Voltage Rating: 50V
  • Height Above Board: 0.039" (1.00mm)
  • Cable End Type: Tapered
  • Housing and Actuator Material: Liquid crystal polymer (LCP)
  • Material Flammability Rating: UL94 V-0
  • Housing Color: -
  • Actuator Color: -
  • Current Rating: 0.5A per contact
  • Standard Package: 1,000
  • Mating Cycle: 20
  • Mounting Type: Surface mount and right-angle
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4051
