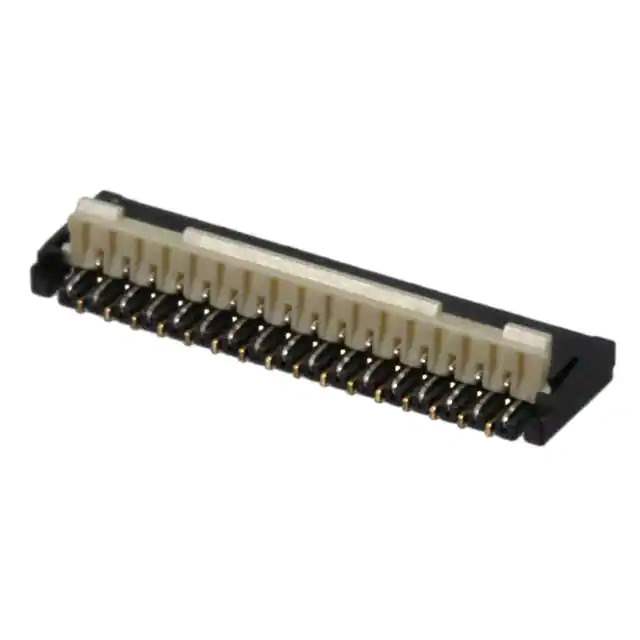

AYF333135

Name: AYF333135
Brand: Panasonic
SKU: 862800
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	AYF333135
Manufacturer	Panasonic
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 31POS 0.3MM R/A / 31 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	Panasonic
Series	Y3B
Package	Tape & Reel
Product Status	Active
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	31
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.035" (0.88mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Voltage Rating	50V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.2A per Contact
Mating Cycles	20
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Win Source Part Number	862800-AYF333135
Ultra Librarian 3D Model	Ultra Librarian AYF333135 CAD Model

Description

The Y3B series FFC, FPC (Flat Flexible) Connector Assembly is a reliable and high-performance component designed for various electronic applications from Panasonic.

Positions: 31
Pitch: 0.012" (0.30mm)
Termination: Solder
Contact Finish: Gold
Contact Material: Copper alloy
Voltage Rating: 50V
Height Above Board: 0.035" (0.88mm)
Flat Flex Type: FPC
Contacts: Top and bottom
Locking Feature: Flip lock and backlock
Cable End Type: Tapered
Housing Material: Liquid crystal polymer (LCP)
Flammability Rating: UL94 V-0
Mounting: Surface mount, right angle
Operating Temperature: -55°C to 85°C
