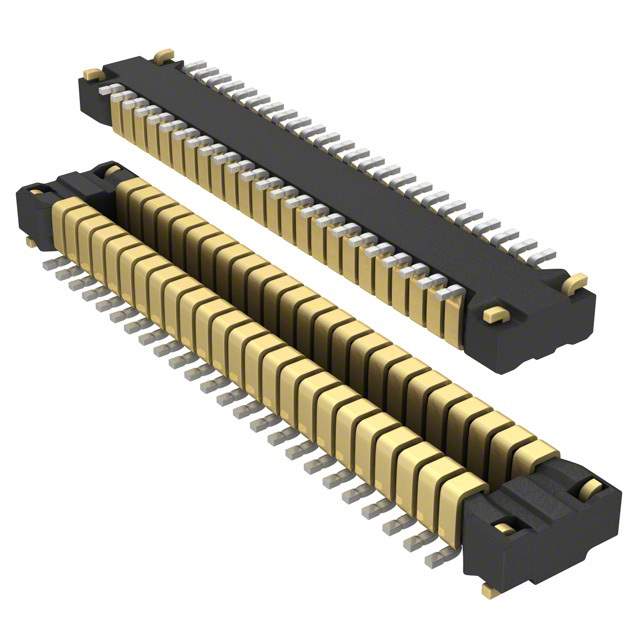

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Connector Type Header, Center Strip Contacts
Number of Positions 48
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.033" (0.84mm)
Base Product Number AXT648
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 255-3331-2,255-3331-1,AXT648124-ND
Standard Package 3,000
Win Source Part Number 1332579-AXT648124
Ultra Librarian 3D Model Ultra Librarian AXT648124 CAD Model

Description

Panasonic Electric Works Connector is a rectangular connector designed for mezzanine (board to board) applications.

  • Application: Mezzanine (Board to Board)
  • Number of Positions: 48
  • Pitch: 0.016" (0.40mm)
  • Mounting: Surface Mountable
  • Height Above Board: 0.033" (0.84mm)
  • ROHS Compliant: Yes
  • Packaging: Reel
  • Standard Package Quantity: 3,000
  • Feature: Solder Retention
  • Contact Finish: Gold
