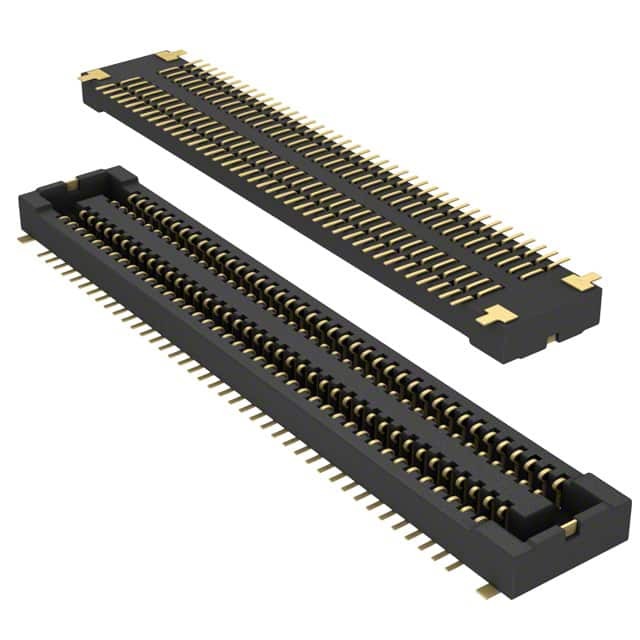

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series F4S
Package Tape & Reel
Product Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 80
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.038" (0.97mm)
Base Product Number AXT580
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 845835-AXT580124
Ultra Librarian 3D Model Ultra Librarian AXT580124 CAD Model

Description

The Panasonic F4S series is a high-quality rectangular connector array designed for mezzanine board-to-board applications. With 80 positions and a pitch of 0.016" (0.40mm), this connector offers reliable and secure connections.

  • Positions: 80
  • Pitch: 0.016" (0.40mm)
  • Contacts: Solder Retention and Socket Outer Shroud
  • Contact Finish: Gold
  • Mounting: Surface Mountable
  • Package: Tape & Reel
  • Height Above Board: 0.038" (0.97mm)
  • Manufacturer: Panasonic
  • Series: F4S
  • Status: Active
  • Standard Package: 3,000 pcs
  • Application: Suitable for various electronic applications
