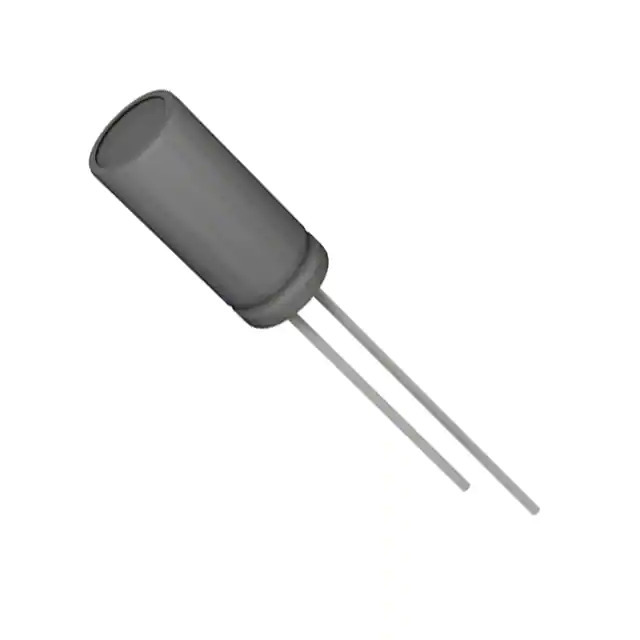

Same model may have multiple batches, images only for reference.

10YXJ220M5X11

Name: 10YXJ220M5X11
Brand: Rubycon
SKU: 1354350
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	10YXJ220M5X11
Manufacturer	Rubycon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 10V RADIAL / 220 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Rubycon
Series	YXJ
Package	Bulk
Product Status	Active
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	10 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	4000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	175 mA @ 120 Hz
Ripple Current @ High Frequency	250 mA @ 100 kHz
Impedance	400 mOhms
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1354350-10YXJ220M5X11
Ultra Librarian 3D Model	Ultra Librarian 10YXJ220M5X11 CAD Model

Description

The YXJ series aluminum electrolytic capacitor is a high-quality component from Rubycon designed for general-purpose applications.

Capacitance: 220 µF
Voltage Rating: 10 V
Tolerance: ±20%
Mounting Type: Through-Hole
Package: Radial, Can
Size: 0.197" diameter, 0.492" height
Lifetime: 4000 hours @ 105°C
Ripple Current: 175 mA (low frequency), 250 mA (high frequency)
Product Status: Active
