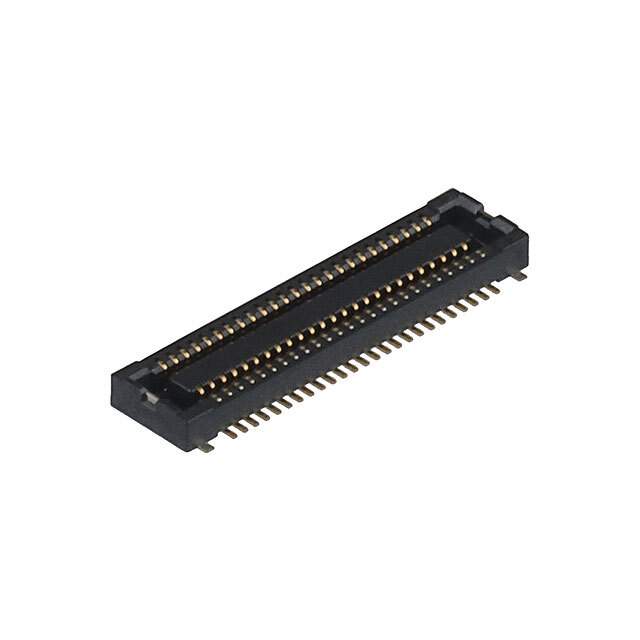

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series F4S
Package Tape & Reel
Product Status Obsolete
Connector Type Socket, Outer Shroud Contacts
Number of Positions 50
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.2mm
Height Above Board 0.046" (1.16mm)
Base Product Number AXT550
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350506-AXT550224
Ultra Librarian 3D Model Ultra Librarian AXT550224 CAD Model

Description

The Panasonic Electric Works F4S series connector is an excellent choice for board-to-board applications.

  • Series: F4S
  • Application: Board-to-Board
  • Positions: 50
  • Pitch: 0.016" (0.40mm)
  • Solder Retention: Yes
  • Contact: Socket Outer Shroud
  • Contact Finish: Gold
  • Mated Stacking Height: 1.2mm
  • Height Above Board: 0.046" (1.16mm)
  • Package: Tape & Reel
  • Pieces per Package: 3,000
  • ECCN: EAR99
  • REACH: Unaffected
  • Lifecycle: Obsolete
