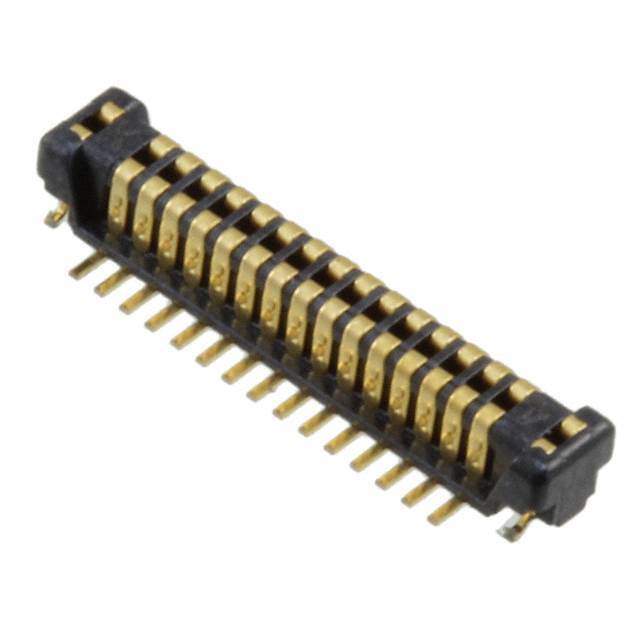

AXT430224 Real Image
Same model may have multiple batches, images only for reference.

AXT430224

Part No AXT430224
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HDR 30POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel
Connector Type Header, Center Strip Contacts
Number of Positions 30
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Style SMD
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.5mm, 2.5mm
Height Above Board 0.049" (1.25mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 717758-AXT430224
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AXT430224 CAD Model

Description

The AXT430224 from Panasonic Electric Works is a high-quality header connector.

  • Positions: 30
  • Pitch: 0.016" (0.40mm)
  • Features: Solder retention
  • Mounting: SMD
  • Rows: Two
  • Contact Finish: Gold
  • Height Above Board: 0.049" (1.25mm)
  • Mated Stacking Heights: 1.5mm and 2.5mm
  • Family: AXT
  • Category: Connectors and Interconnects
  • Supply and Demand Status: Balanced
  • Manufacturer: Panasonic Electric Works
