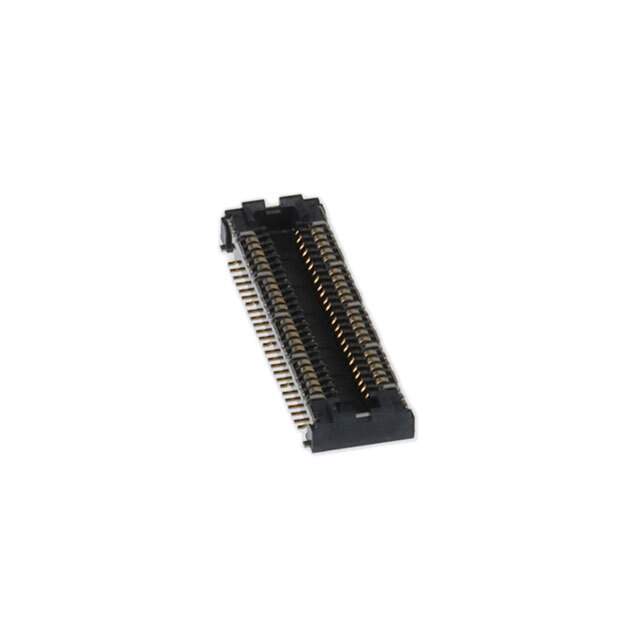

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series P4S
Package Tape & Reel
Connector Type Socket, Outer Shroud Contacts
Number of Positions 50
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Shielded, Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.55mm
Height Above Board 0.057" (1.45mm)
Base Product Number AXT3501
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1341312-AXT3501F4
Ultra Librarian 3D Model Ultra Librarian AXT3501F4 CAD Model

Description

The Panasonic Electric Works P4S series rectangular connector is designed for use in a variety of applications, including board to board connections.

  • Positions: 50
  • Pitch: 0.016" (0.40mm)
  • Packaging: tape & reel
  • Mated Stacking Height: 1.55mm
  • Applications: board to board connections
