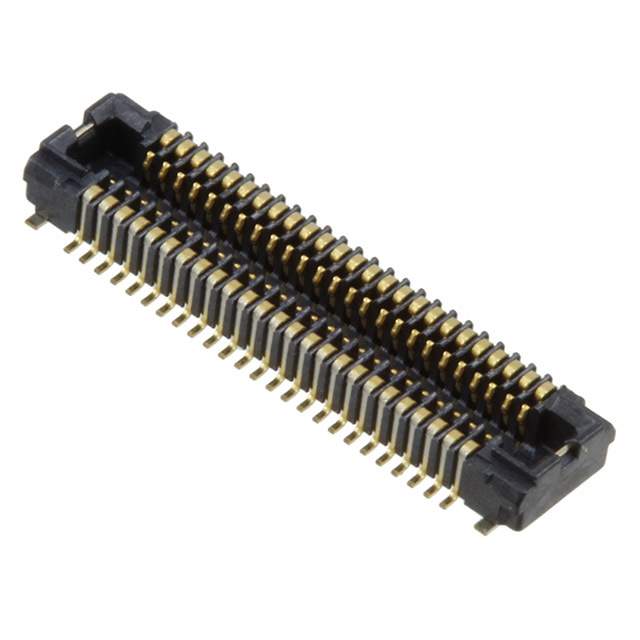

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 50
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.5mm
Height Above Board 0.057" (1.45mm)
Win Source Part Number 1021094-AXT350124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AXT350124 CAD Model

Description

The Panasonic Electric Works 50-Position Socket Connector is a high-quality connector with an outer shroud contact and a solder retention feature.

  • Contact: Outer Shroud
  • Feature: Solder Retention
  • Pitch: 0.016" (0.40mm)
  • Height Above Board: 0.057" (1.45mm)
  • Rows: 2
  • Mounting: SMD (SMT)
  • Contact Finish: Gold
  • Mated Stacking Height: 1.5mm
  • Packaging: Reel - TR
  • Positions: 50
