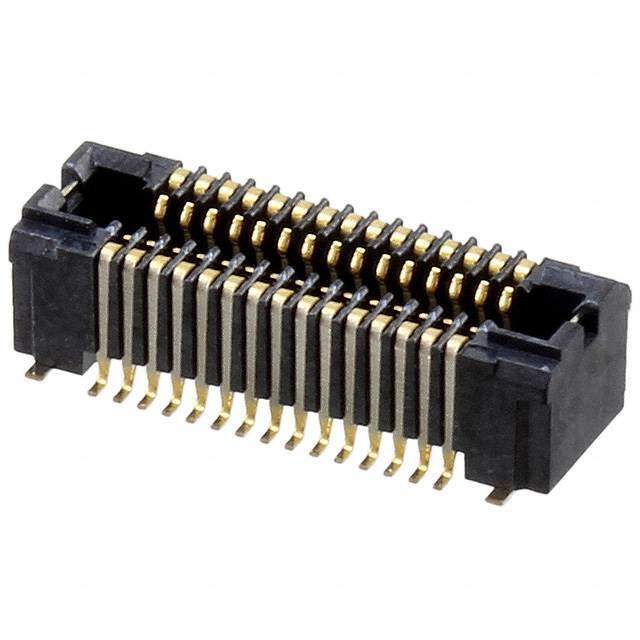

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 30
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.5mm, 2mm
Height Above Board 0.057" (1.45mm)
Win Source Part Number 1021087-AXT330124
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian AXT330124 CAD Model

Description

The Panasonic Electric Works connector is a high-quality electronic component that is designed to meet the demands of today's modern electronic devices.

  • Connector Type: Socket with outer shroud contacts
  • Number of Positions: 30
  • Pitch: 0.016" (0.40mm)
  • Feature: Solder retention
  • Packaging: Reel - TR
  • Number of Rows: 2
  • Contact Finish: Gold
  • Mated Stacking Heights: 1.5mm and 2mm
  • Height above board: 0.057" (1.45mm)
  • Application: Interconnects and Connectors
  • Package Quantity: 1k pcs
  • Status: Active with medium popularity
