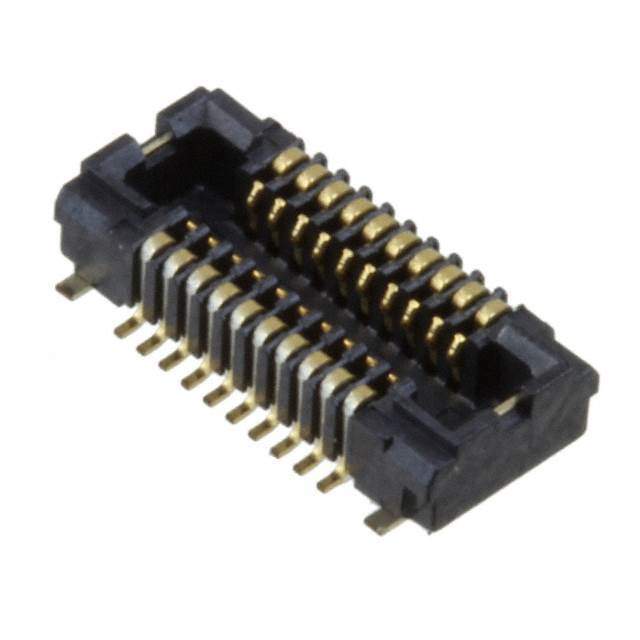

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series P4S
Package Tape & Reel (TR)
Connector Type Socket, Outer Shroud Contacts
Number of Positions 20
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide, Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.5mm
Height Above Board 0.057" (1.45mm)
Base Product Number AXT320
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names -AXT320114-ND
Standard Package 3,000
Win Source Part Number 1013736-AXT320114
Ultra Librarian 3D Model Ultra Librarian AXT320114 CAD Model

Description

The Panasonic P4S series connector AXT320114 is a rectangular connector with an edge type, mezzanine (board-to-board) design.

  • Series: P4S
  • Positions: 20
  • Pitch: 0.016" (0.40mm)
  • Features: Board guide and solder retention features, outer shroud contacts
  • Contact Finish: Gold
  • Package: Tape and reel
  • Height Above Board: 0.057" (1.45mm)
  • Mated Stacking Height: 1.5mm
  • Standard Package: 3,000
  • Mounting Type: SMD (SMT)
  • ECCN: EAR99
