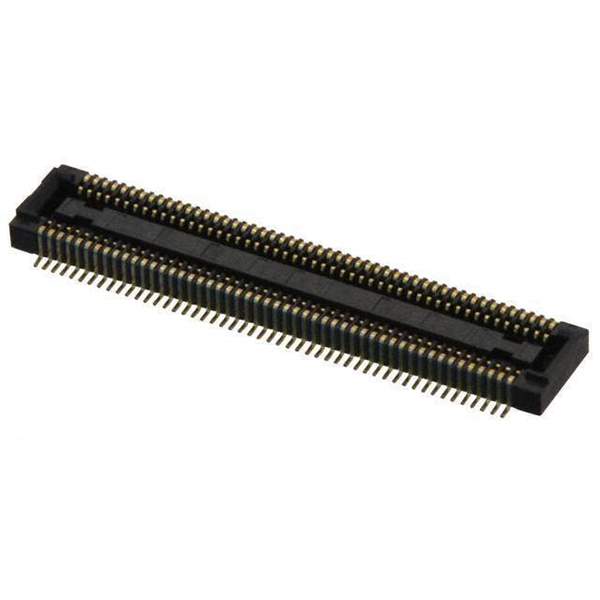

AXK700147G Real Image
Same model may have multiple batches, images only for reference.

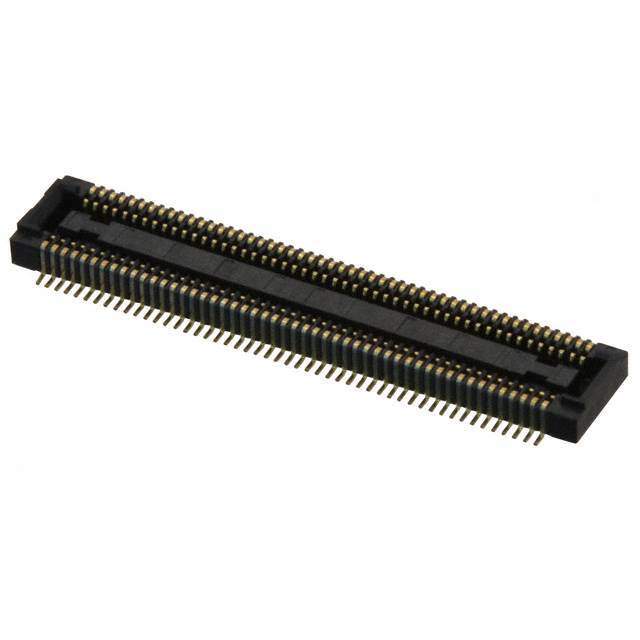

AXK700147G

Part No AXK700147G
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 100POS SMD GOLD / 100 Position Connector Socket, Center Strip, Outer Edge Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series P4
Package Cut Tape (CT),
Connector Type Socket, Center Strip, Outer Edge Contacts
Number of Positions 100
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Contact Finish Gold
Mated Stacking Heights 1.5mm
Height Above Board 0.059" (1.50mm)
Base Product Number AXK700147
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names AXK700147G-ND,255-2920-1,255-2920-2,255-2920-6
Standard Package 3,000
Win Source Part Number 1011329-AXK700147G
Ultra Librarian 3D Model Ultra Librarian AXK700147G CAD Model

Description

The AXK700147G is a socket connector that belongs to the P4 series of edge type rectangular connectors.

  • Series: P4
  • Type: edge type rectangular connectors
  • Contacts: center strip and outer edge contacts
  • Rows: two rows
  • Positions: 100
  • Pitch: 0.016 inches (0.40mm)
  • Height above Board: 0.059 inches (1.50mm)
  • Contact Finish: gold
  • Packaging: cut tape (CT)
  • Mated Stacking Heights: 1.5mm
  • Application: board-to-board
  • Mounting: surface-mount technology (SMT)
  • Manufacturer: Panasonic Electric Works
  • Other Names: AXK700147G-ND, 255-2920-1, 255-2920-2, and 255-2920-6
