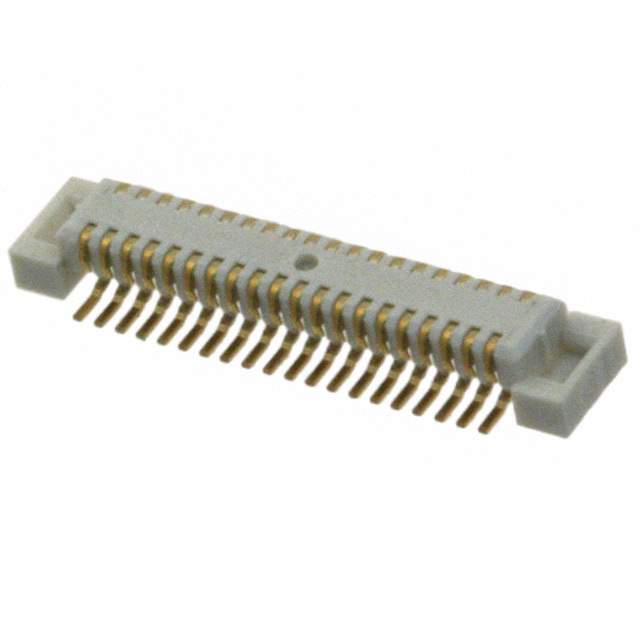

Same model may have multiple batches, images only for reference.

AXK6F10547YG

Name: AXK6F10547YG
Brand: Panasonic
SKU: 1332343
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	AXK6F10547YG
Manufacturer	Panasonic
Catalog	Rectangular Connectors
Description	CONN HDR 10POS SMD GOLD / 10 Position Connector Header, Center Strip Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer	Panasonic Electric Works
Packaging	Reel - TR
Connector Type	Header, Center Strip Contacts
Number of Positions	10
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	Surface Mount
Contact Finish	Gold
Mated Stacking Heights	2.5mm
Height Above Board	0.069" (1.75mm)
Base Product Number	AXK6F10547
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	255-3249-1,255-3249-2,AXK6F10547YG-ND
Standard Package	2,000
Win Source Part Number	1332343-AXK6F10547YG
Ultra Librarian 3D Model	Ultra Librarian AXK6F10547YG CAD Model

Alternative Products

Description

The Panasonic Electric Works AXK6F10547YG connector is a header, center strip contacts connector with 10 positions and two rows.

Pitch: 0.020" (0.50mm)
Mated Stacking Height: 2.5mm
Contact Finish: Gold
Mounting: SMD
ECCN: EAR99
RoHS Compliant: Yes
Packaging: Reel of 2000
HTSUS: 8536.69.4040
Alternative: 255-3249-1, 255-3249-2, AXK6F10547YG-ND
