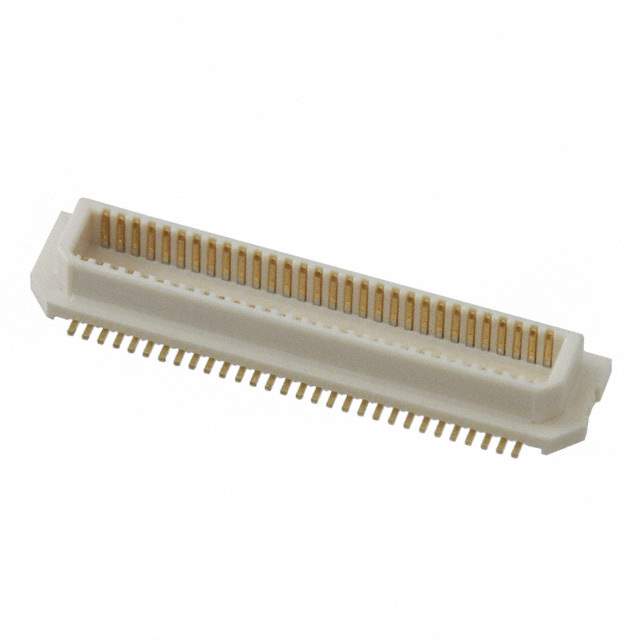

AXK680347YG Real Image
Same model may have multiple batches, images only for reference.

AXK680347YG

Part No AXK680347YG
Manufacturer Panasonic
Catalog Circular Connectors - Housings
Description CONN HDR 80POS SMD GOLD / 80 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series P5K
Package Tape & Reel
Connector Type Header, Outer Shroud Contacts
Number of Positions 80
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Contact Finish Gold
Mated Stacking Heights 3mm
Height Above Board 0.094" (2.40mm)
Base Product Number AXK680347
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names AXK680347YG-ND,255-3246-2,255-3246-1,255-3246-6
Standard Package 1,500
Win Source Part Number 1000079-AXK680347YG
Ultra Librarian 3D Model Ultra Librarian AXK680347YG CAD Model

Description

The AXK680347YG is a rectangular connector array manufactured by Panasonic Electric Works.

  • Positions: 80
  • Type: header with outer shroud contacts
  • Mounting: through hole
  • Pitch: 0.020" (0.50mm)
  • Height above Board: 0.094" (2.40mm)
  • Mated Stacking Height: 3mm
