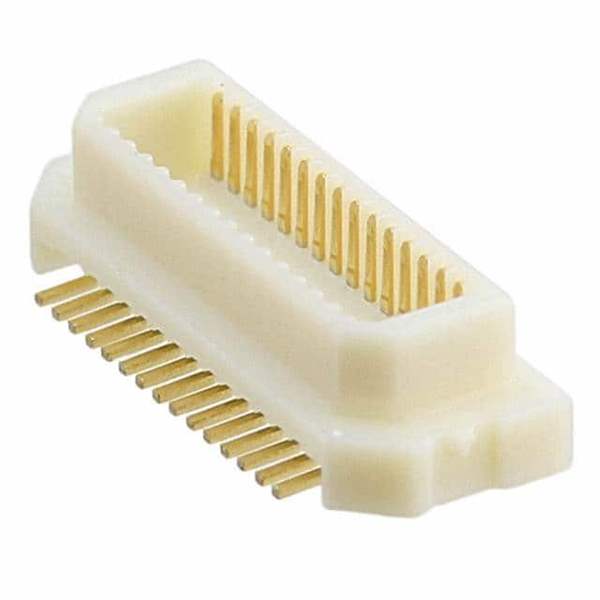

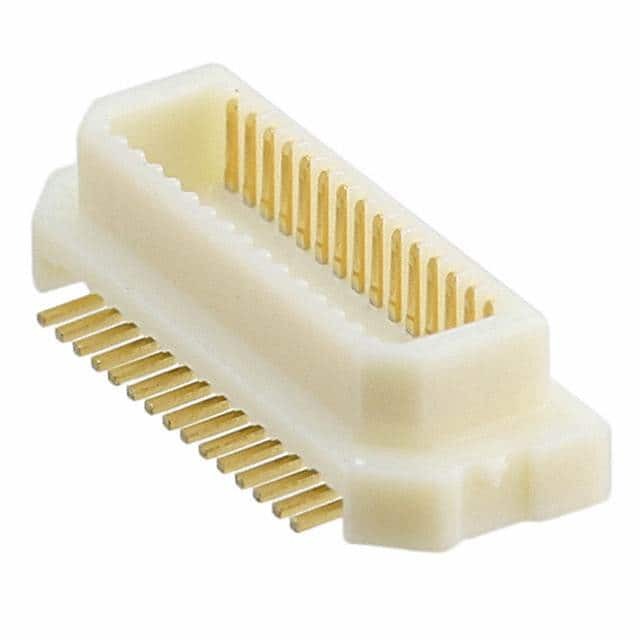

AXK630247YG

Name: AXK630247YG
Brand: Panasonic
SKU: 862766
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AXK630247YG
Manufacturer	Panasonic
Catalog	Rectangular Connectors
Description	CONN HDR 30POS SMD GOLD / 30 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Panasonic
Series	P5K
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Obsolete
Connector Type	Header, Outer Shroud Contacts
Number of Positions	30
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Contact Finish	Gold
Mated Stacking Heights	3.5mm
Height Above Board	0.114" (2.90mm)
Base Product Number	AXK630247
Standard Package	1,500 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	862766-AXK630247YG
Ultra Librarian 3D Model	Ultra Librarian AXK630247YG CAD Model

Description

The AXK630247YG is a rectangular connector array designed for board-to-board connections.

Positions: 30
Type: Header
Contacts: Outer Shroud
Pitch: 0.020" (0.50mm)
Contact Finish: Gold-plated
Height Above Board: 0.114" (2.90mm)
Mated Stacking Height: 3.5mm
Mounting: Surface Mountable
Series: P5K
Manufacturer: Panasonic
Standard Package: 1,500 pcs
Status: Obsolete
