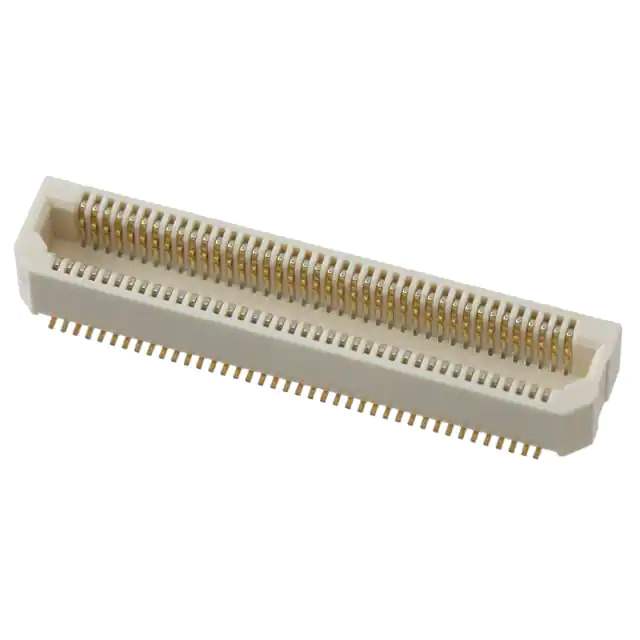

AXK5S00247YG

Name: AXK5S00247YG
Brand: Panasonic
SKU: 567366
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AXK5S00247YG
Manufacturer	Panasonic
Catalog	Rectangular Connectors
Description	CONN SOCKET 100POS SMD GOLD / 100 Position Connector Socket, Center Strip Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Panasonic
Series	P5KS
Package	Tape & Reel
Product Status	Active
Connector Type	Socket, Center Strip Contacts
Number of Positions	100
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Contact Finish	Gold
Mated Stacking Heights	4.5mm, 5.5mm, 6.5mm
Height Above Board	0.140" (3.55mm)
Base Product Number	AXK5S00247
Standard Package	1,500 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	567366-AXK5S00247YG
Ultra Librarian 3D Model	Ultra Librarian AXK5S00247YG CAD Model

Alternative Products

Description

The 567366-AXK5S00247YG is a rectangular connector array with 100 positions.

Pitch: 0.020" (0.50mm)
Contacts: socket, center strip
Rows: 2
Contact Finish: gold
Package: tape and reel
Pieces per Package: 1,500
Mated Stacking Heights: 4.5mm, 5.5mm, and 6.5mm
Height Above the Board: 0.140" (3.55mm)
Mounting: surface mountable
Series: P5KS
Operating Temperature: -40°C to 85°C
Manufacturer: Panasonic
Status: currently active
