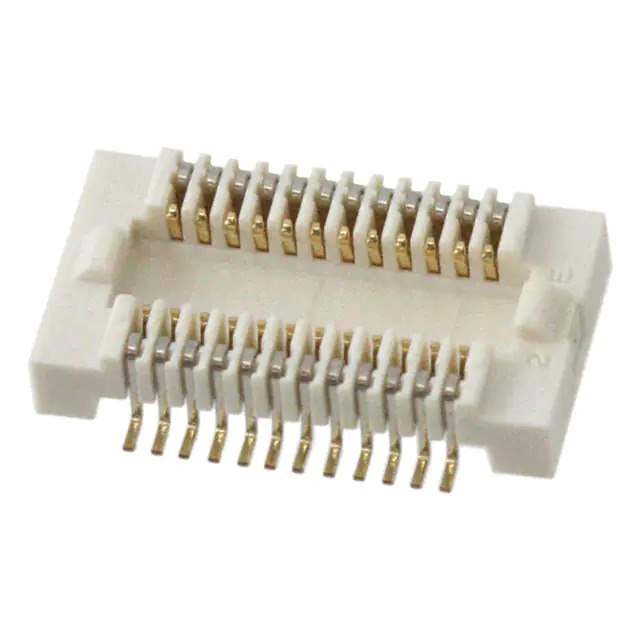

AXK5F24547YG Real Image
Same model may have multiple batches, images only for reference.

AXK5F24547YG

Part No AXK5F24547YG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 24POS SMD GOLD / 24 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series P5KF
Package Tape & Reel
Product Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 24
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Contact Finish Gold
Mated Stacking Heights 2mm, 2.5mm
Height Above Board 0.073" (1.85mm)
Base Product Number AXK5F24547
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862761-AXK5F24547YG
Ultra Librarian 3D Model Ultra Librarian AXK5F24547YG CAD Model

Description

The 862761-AXK5F24547YG is a rectangular connector array designed for mezzanine board-to-board connections.

  • Series: P5KF
  • Positions: 24
  • Pitch: 0.020" (0.50mm)
  • Connector Type: Socket
  • Contacts: Outer Shroud
  • Mounting: Surface Mount
  • Package: Tape & Reel
  • Standard Package: 2,000 pcs
  • Height Above Board: 0.073" (1.85mm)
  • Mated Stacking Heights: 2mm and 2.5mm
  • Contact Finish: Gold
  • Manufacturer: Panasonic
