Same model may have multiple batches, images only for reference.

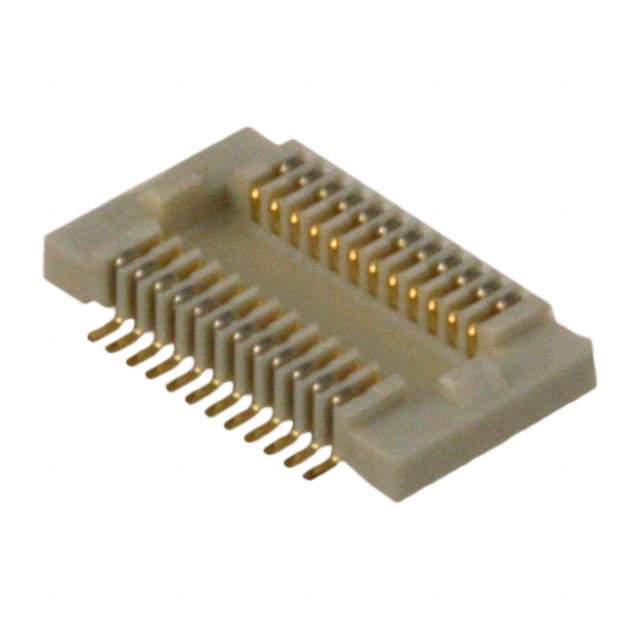

AXK5F50347YG Real Image
Same model may have multiple batches, images only for reference.

AXK5F50347YG

Part No AXK5F50347YG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 50POS SMD GOLD / Narrow pitch connectors (0.5mm pitch) Two-piece structure and 0.5mm pitch.
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electric Works
Packaging Reel
Connector Type Socket, Outer Shroud Contacts
Number of Positions 50
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Style SMD
Contact Finish Gold
Mated Stacking Heights 1.5mm
Height Above Board 0.053" (1.35mm)
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807216-AXK5F50347YG
Ultra Librarian 3D Model Ultra Librarian AXK5F50347YG CAD Model

Description

The Panasonic Electric Works 807216-AXK5F50347YG is a socket, outer shroud contacts connector type with a height above board of 0.053 inches (1.35mm). Panasonic Electric Works

  • Packaging: Reel
  • Popularity: Medium
  • Positions: 50
  • Pitch: 0.020 inches (0.50mm)
