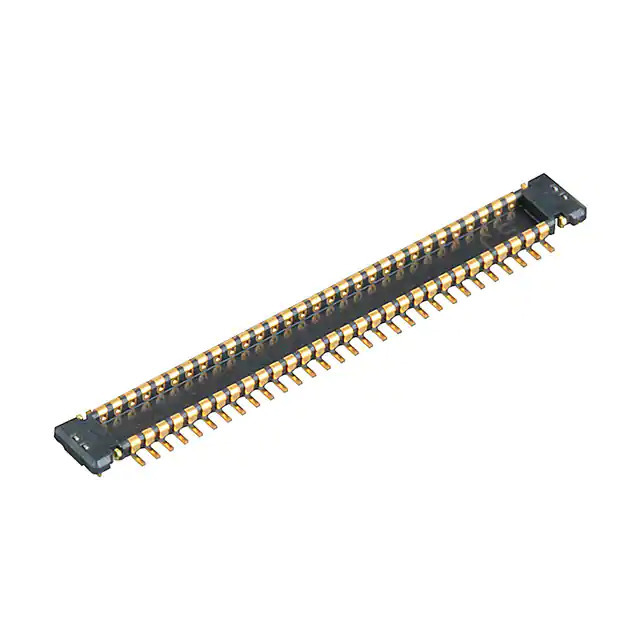

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series A35UH
Package Tape & Reel
Product Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 40
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness -
Mated Stacking Heights 0.6mm
Height Above Board 0.018" (0.46mm)
Base Product Number AXF6D4
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364598-AXF6D4012
Ultra Librarian 3D Model Ultra Librarian AXF6D4012 CAD Model

Description

The AXF6D4012 is a rectangular connector array manufactured by Panasonic Electric Works.

  • Series: A35UH
  • Mounting Type: Surface Mount
  • Connector Type: Header with Outer Shroud Contacts
  • Number of Positions: 40
  • Number of Rows: 2
  • Mated Stacking Height: 0.6mm
  • Pitch: 0.014" (0.35mm)
  • Contact Finish: Gold
  • Solder Retention: Capable
  • Temperature Range: -40°C to 100°C
  • Package: Tape and Reel
