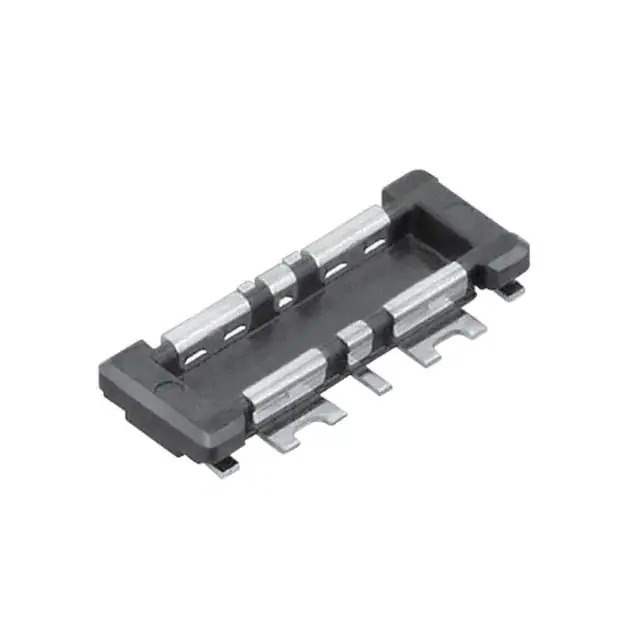

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series B01
Package Tape & Reel
Product Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 6
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 0.6mm
Height Above Board 0.018" (0.46mm)
Base Product Number AXF461
Standard Package 15,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862741-AXF461500
Ultra Librarian 3D Model Ultra Librarian AXF461500 CAD Model

Description

The AXF461500 is a rectangular connector array from Panasonic's B01 series. It is a header with outer shroud contacts, featuring a total of 6 positions arranged in 2 rows.

  • Series: B01 series
  • Type: Header with outer shroud contacts
  • Positions: 6
  • Rows: 2
  • Contact Finish: Gold-plated contacts
  • Contact Finish Thickness: 4.00µin (0.100µm)
  • Mounting: Surface mount mounting
  • Package: Tape & reel package
  • Mated Stacking Height: 0.6mm
  • Height Above the Board: 0.018" (0.46mm)
  • Features: Solder retention feature
