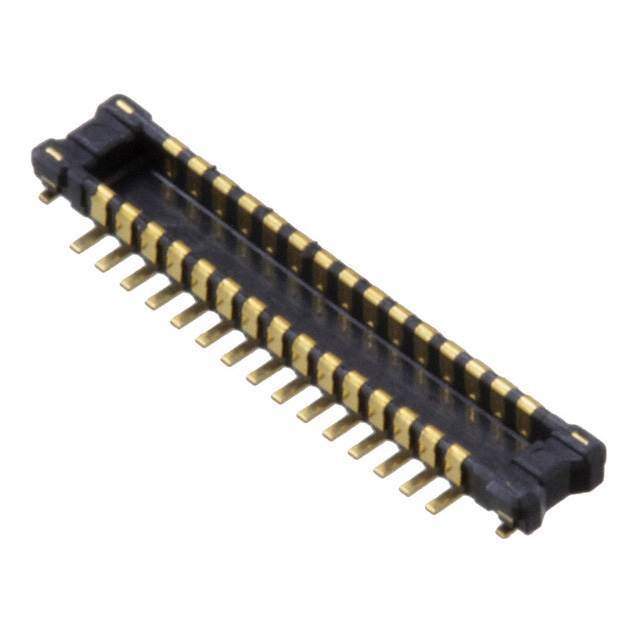

AXE630224

Name: AXE630224
Brand: Panasonic
SKU: 985965
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AXE630224
Manufacturer	Panasonic
Catalog	Rectangular Connectors
Description	CONN HDR 30POS SMD GOLD / 30 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Panasonic Electric Works
Series	A4S
Package	Tube
Connector Type	Header, Outer Shroud Contacts
Number of Positions	30
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Solder Retention
Contact Finish	Gold
Mated Stacking Heights	1mm
Height Above Board	0.026" (0.65mm)
Base Product Number	AXE630
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	255-4249-5
Standard Package	100
Win Source Part Number	985965-AXE630224
Ultra Librarian 3D Model	Ultra Librarian AXE630224 CAD Model

Description

The AXE630224 is a header connector with outer shroud contacts from Panasonic Electric Works.

Series: A4S
Positions: 30
Pitch: 0.016 inches (0.40mm)
Rows: two
Features: solder retention
Contact Finish: gold
Package: tube
Height above Board: 0.026 inches (0.65mm)
Mated Stacking Height: 1mm
Mounting: SMD (SMT) technology
MSL Level: 1 (unlimited)
HTSUS: 8536.69.4040
Other Names: 255-4249-5
