Part No AXE628124
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HDR 28POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A4S
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Connector Type Header, Outer Shroud Contacts
Number of Positions 28
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Base Product Number AXE628
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862737-AXE628124
Ultra Librarian 3D Model Ultra Librarian AXE628124 CAD Model

Description

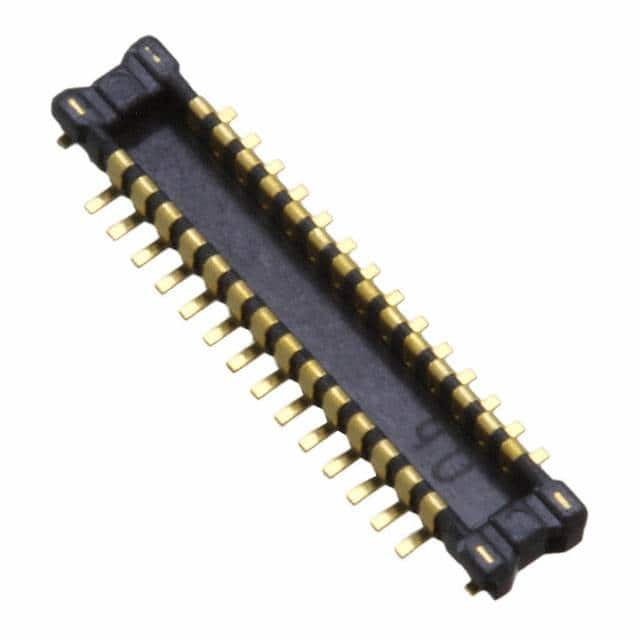

The Panasonic AXE628124 is a rectangular connector array from the A4S series. It is a header connector with outer shroud contacts and has a total of 28 positions.

  • Series: A4S
  • Type: Header connector with outer shroud contacts
  • Positions: 28
  • Pitch: 0.016" (0.40mm)
  • Features: Solder retention
  • Contact Finish: Gold
  • Mounting: Surface mount
  • Height Above the Board: 0.026" (0.65mm)
  • Package: Tape & reel
  • Standard Package Quantity: 5,000 pcs
  • Application: Mezzanine (board to board) applications
