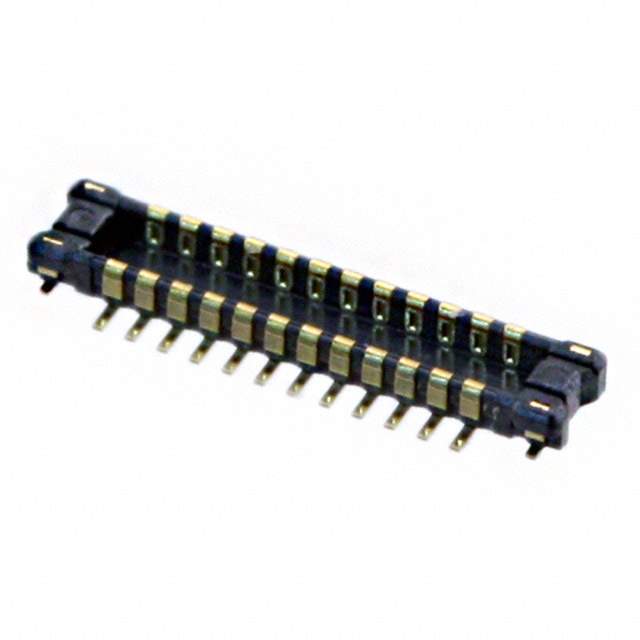

AXE624224 Real Image
Same model may have multiple batches, images only for reference.

AXE624224

Part No AXE624224
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HDR 24POS SMD GOLD / 24 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series A4S
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type Header, Outer Shroud Contacts
Number of Positions 24
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.026" (0.65mm)
Base Product Number AXE624
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 255-4248-5-ND,255-4248-5,255-4248-2,255-4248-1
Standard Package 5,000
Win Source Part Number 986244-AXE624224
Ultra Librarian 3D Model Ultra Librarian AXE624224 CAD Model

Description

The AXE624224 is a connector from Panasonic Electric Works that belongs to the Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) category of electronic components.

  • Category: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
  • Mounting: surface mount device (SMD)
  • Positions: 24
  • Pitch: 0.016'' (0.40mm)
  • Features: solder retention
  • Type: header with outer shroud contacts
  • Manufacturer: Panasonic Electric Works
  • Win Source Part Number: 986244
