Same model may have multiple batches, images only for reference.

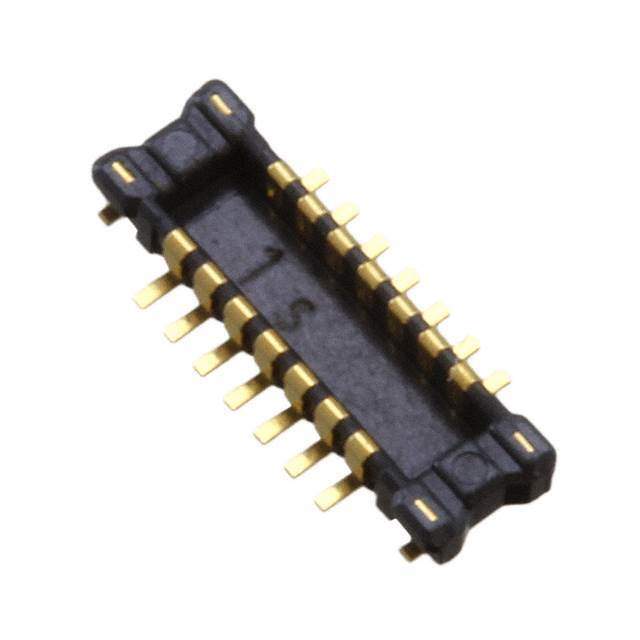

AXE614124 Real Image
Same model may have multiple batches, images only for reference.

AXE614124

Part No AXE614124
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HEADER .4MM 14 POS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 14
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1020931-AXE614124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian AXE614124 CAD Model

Description

The Panasonic Electric Works 1020931-AXE614124 is a connector header with outer shroud contacts.

  • Positions: 14
  • Pitch: 0.016" (0.40mm)
  • Features: solder retention
  • Contact Finish: gold
  • Mounting Type: SMD (SMT) technology
  • Supply and Demand Status: balanced
  • Package: 5k pcs
