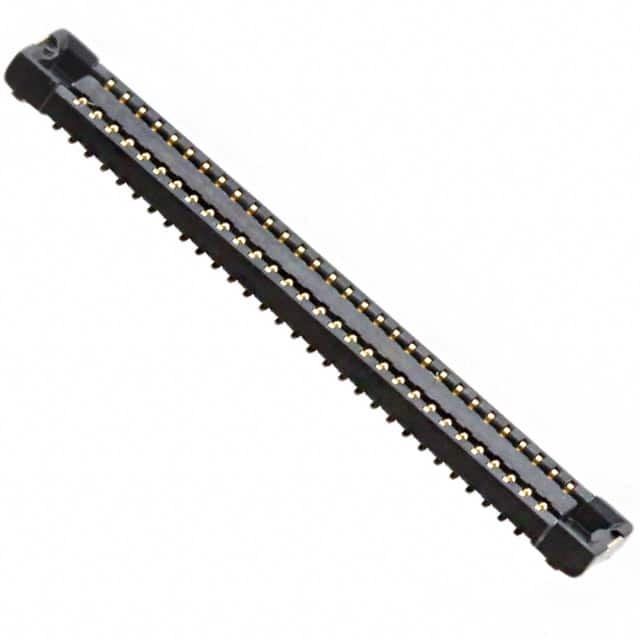

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A4S
Package Tape & Reel
Product Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 64
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Base Product Number AXE564
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862736-AXE564127
Ultra Librarian 3D Model Ultra Librarian AXE564127 CAD Model

Description

The 862736-AXE564127 is a rectangular connector array designed for board-to-board connections. It belongs to the A4S series and has 64 positions with a pitch of 0.016" (0.40mm).

  • Design: Board-to-board connections
  • Series: A4S
  • Positions: 64
  • Pitch: 0.016" (0.40mm)
  • Features: Solder retention
  • Contact Type: Socket with center strip contacts
  • Rows: 2
  • Contact Finish: Gold
  • Package: Tape & reel
  • Standard Package: 5,000 pcs
  • Mounting Type: Surface mount
  • Height Above the Board: 0.030" (0.75mm)
  • Manufacturer: Panasonic
  • Base Product Number: AXE564
  • Status: Active
