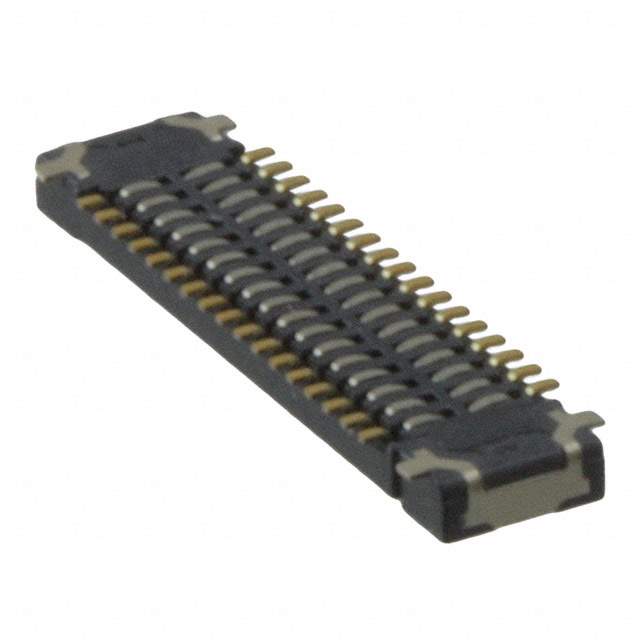

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 36
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Win Source Part Number 1020923-AXE536124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian AXE536124 CAD Model

Description

The Panasonic Electric Works AXE536124 is a connector that is designed for use in various electronic devices.

  • Package: Socket, Center Strip Contacts
  • Positions: 36
  • Pitch: 0.016" (0.40mm)
  • Mounting Type: Surface Mount
  • Contact Finish: Gold
  • Reliability: High
  • Supply and Demand Status: Balanced
