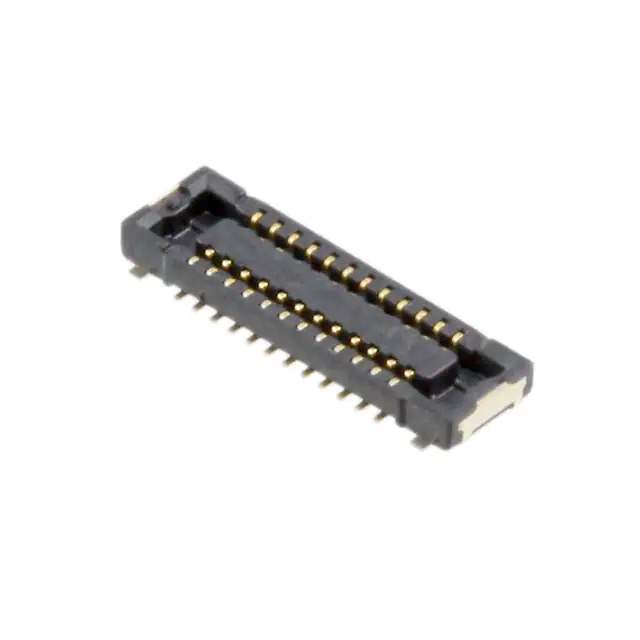

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A4S
Package Tape & Reel
Product Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 24
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Base Product Number AXE524
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862730-AXE524127
Ultra Librarian 3D Model Ultra Librarian AXE524127 CAD Model

Description

The AXE524127 is a rectangular connector array from Panasonic's A4S series. It is designed for mezzanine board-to-board connections and features a socket connector with center strip contacts.

  • Series: A4S
  • Design: Mezzanine board-to-board connections
  • Connector Type: Socket connector with center strip contacts
  • Positions: 24
  • Pitch: 0.016 inches (0.40mm)
  • Contact Finish: Gold
  • Mounting: Surface mount
  • Package: Tape and reel
  • Mated Stacking Heights: 0.8mm and 1mm
  • Height Above the Board: 0.030 inches (0.75mm)
  • Status: Active product
  • Standard Package: 5,000 pcs
